FAITAL PRO 18XL1800 - 18" EXTREME POWER WOOFER

THE FAITAL PRO 18XL1800 HANDLES A MASSIVE 3,600 WATTS PROGRAM W/ A STRONG BASS & A VERY HIGH 20.17MM XMAX!

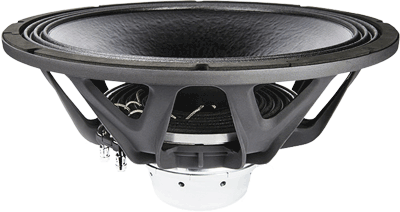

Faital Pro 18XL1800

Item Price: $677.95

WOOFER MODEL 18XL1800

SPEAKER CABINET DESIGNS BELOW

Specifications

Nominal Basket Diameter 18" / 460mm
Impedance 8 ohms
AES Power Rating 1,600 Watts
Program Power 3,200 Watts
Frequency Response 30Hz - 1.6kHz
Sensitivity (1W/1m) 95dB SPL
Voice Coil Diameter 4" / 100mm
Voice Coil Length 45 mm
Air Gap Height 14 mm
X Damage (peak to peak) 36 mm
Flux Density 1.15 T
BL Factor 25.4 N/A

Mounting Information

Overall Diameter 18.11" / 460mm
Bolt Circle Diameter 17.32" / 440mm
Baffle Cutout Diameter-Front Mount 16.61" / 422mm
No. Of Mounting Holes 8
Overall Depth 9.17" / 233mm
Flange & gasket Thickness 0.55" / 14mm
Net Weight 22.5 lb. / 10.2 kg.
Shipping Weight 25.8 lb. / 11.7 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Copper
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 29 Hz
Impedance (Re) 5.35 ohms
Coil Inductance (Le) 1.45 mH
Mechanical Q (Qms) 9.9
Electrical Factor (Qes) .42
Total Q (Qts) .4
Comp. Equivelant Vol. (Vas) 6.56 ft3 / 185.8 Liters
Voice Coil Overhang (Xmax) 20.17 mm
Surface Area of Cone (Sd)m2 0.1094m2
Reference Efficiency 1.06%
Diaphragm Mass (Mms) 275 Grams
Mechanical Compliance (Cms) .11 mm/N
Mechanical Resistance (Rms) 5.1 Kg/s
EBP 69

Frequency Response

Faital Pro 18XL1800 Frequency

Free Air Impedance Curve
Faital Pro 18XL1800 Impedance

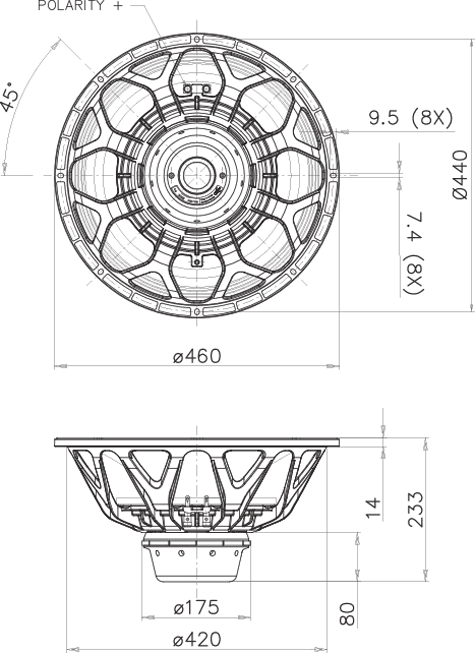

Mounting Dimensions

Faital Pro 18XL1800 Dimensions

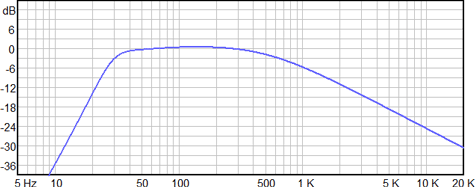

BASS REFLEX(PORTED) SINGLE CABINET SIZE & FREQUENCY RESPONSE
SINGLE CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 18"

  • Internal Cabinet Volume - 8.5 cu. ft.

  • Internal Cabinet Dimensions: 20" Wide x 28" Height x 26.25" Deep

  • Tuning - 30Hz

  • Frequency @ -3dB - 29.86Hz

  • Horizontal Slot Port - 20" Wide x 3.25" Height

  • Slot Port Depth - 21.125" Deep

BASS REFLEX(PORTED) DUAL CABINET SIZE & FREQUENCY RESPONSE
DUAL CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 2 x 18"

  • Internal Cabinet Volume - 17.0 cu. ft.

  • Internal Cabinet Dimensions: 47" Wide x 22" Height x 28.5" Deep

  • Tuning - 30Hz

  • Frequency @ -3dB - 29.63Hz

  • Vertical Slot Port - 22" Wide x 5" Height

  • Slot Port Depth - 14.75" Deep

FOR MORE CABINET SIZE OPTIONS & PORTING HELP PLEASE CALL 1-877-732-5374 OR 1-732-308-4670
