• THE FAITAL PRO 18FH510 18" SPEAKER CAN HANDLE 600 WATTS AES & 1,200 WATTS PROGRAM POWER
• FEATURES A HIGH EFFICIENCY OF 98DB SPL & A HIGH 9.25MM XMAX FOR A STRONG BASS
• HAS A SMOOTH SOUND W/ A WIDE FREQUENCY RANGE FROM 30HZ TO 2.5KHZ
• TRIPLE ROLL SURROUND FOR INCREASED CONTROL IN THE LOWER BASS FREQUENCIES
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR BASS REFLEX(PORTED) SPEAKER CABINETS INCLUDING BASS GUITAR & PA SUBWOOFER SYSTEMS, ETC.
• AVAILABLE IN 4 OR 8 OHMS

VERY SMOOTH & CLEAN SOUNDING 18" WOOFER W/ A TRIPLE ROLL SURROUND, HIGH 9.25MM XMAX & HIGH 98DB SPL!
	4 Ohm Version Item Price: $364.95
	8 Ohm Version Item Price: $364.95
WOOFER MODEL	18FH510
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	4 or 8 ohms
AES Power Rating	600 Watts
Program Power	1,200 Watts
Frequency Response	30Hz - 2.5kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	22 mm
Air Gap Height	10.5 mm
X Damage	21 mm
BL Factor	21 N/A
Mounting Information
Overall Diameter	18.11" / 460mm
Bolt Circle Diameter	17.32" / 440mm
Baffle Cutout Diameter-Front Mount	16.57" / 421mm
No. Of Mounting Holes	8
Overall Depth	7.93" / 201.5mm
Flange & gasket Thickness	0.54" / 13.7mm
Net Weight	19.3 lb. / 7.75 kg.
Shipping Weight	22.71 lb. / 10.3 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Suspension	Triple Roll
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	30 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	1.25 mH
Mechanical Q (Qms)	13.6
Electrical Factor (Qes)	.3
Total Q (Qts)	.33
Comp. Equivelant Vol. (Vas)	13.04 ft3 / 369.4 Liters
Voice Coil Overhang (Xmax)	9.25 mm
Surface Area of Cone (Sd)m2	0.1134m2
Reference Efficiency	3.2%
Diaphragm Mass (Mms)	139 Grams
Mechanical Compliance (Cms)	.22 mm/N
Mechanical Resistance (Rms)	1.92 Kg/s
EBP	100

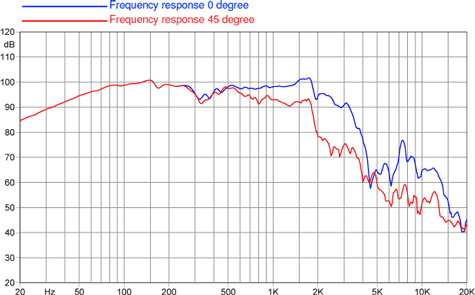

Frequency Response

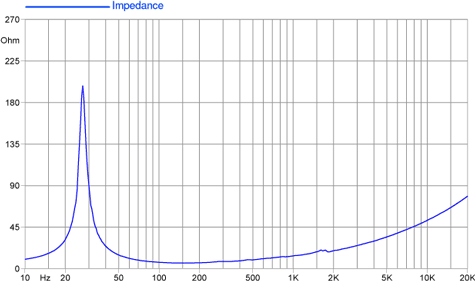

Free Air Impedance Curve
Mounting Dimensions
