FAITAL PRO 15PR400 - 15" BASS GUITAR SPEAKER
|
|
|
FAITAL PRO 15PR400 - 15" BASS GUITAR SPEAKER |
|
THE FAITAL PRO 15PR400 HAS A WIDE FREQUENCY RANGE FROM 35HZ TO 4KHZ W/ HIGH SENSITIVTY OF 100DB SPL & A 5.75MM XMAX! |
|
|
|
4 Ohm Version
Item Price: $341.95 |
|
8 Ohm Version
Item Price: $341.95 |
|
| WOOFER MODEL | 15PR400 |
|
SPEAKER CABINET DESIGNS BELOW |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
4 or 8 ohms |
|
AES
Power Rating |
400 Watts |
| Program Power | 800 Watts |
| Frequency Response | 35Hz - 4kHz |
|
Sensitivity
(1W/1m) |
100dB SPL |
| Voice Coil Diameter | 3" / 77mm |
| Voice Coil Length | 15 mm |
| Air Gap Height | 10.5 mm |
| X Damage | 15.5 mm |
| BL Factor | 16.7 N/A |
|
Mounting Information |
|
| Overall Diameter | 15.47" / 393mm |
| Bolt Circle Diameter | 14.72" / 374mm |
| Baffle Cutout Diameter-Front Mount | 13.94" / 354mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 6.48" / 164.7mm |
| Flange & gasket Thickness | 0.52" / 13.1mm |
| Net Weight | 7.92 lb. / 3.6 kg. |
| Shipping Weight | 10.34 lb. / 4.7 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 35 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | .75 mH |
| Mechanical Q (Qms) | 6.0 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .32 |
| Comp. Equivelant Vol. (Vas) | 7.88ft3 / 223 Liters |
| Voice Coil Overhang (Xmax) | 5.75 mm |
| Surface Area of Cone (Sd)m2 | 0.0805m2 |
| Reference Efficiency | 2.71% |
| Diaphragm Mass (Mms) | 85.2 Grams |
| Mechanical Compliance (Cms) | .24 mm/N |
| Mechanical Resistance (Rms) | 3.11 Kg/s |
|

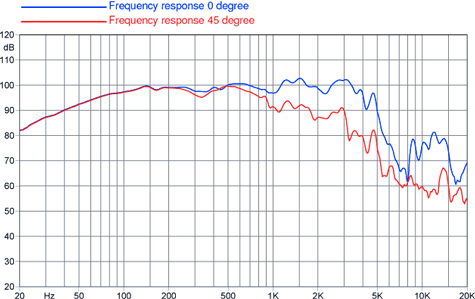

Frequency Response |
|
|
|
|

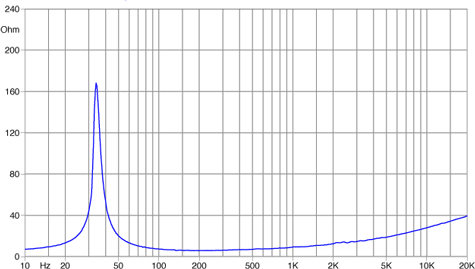

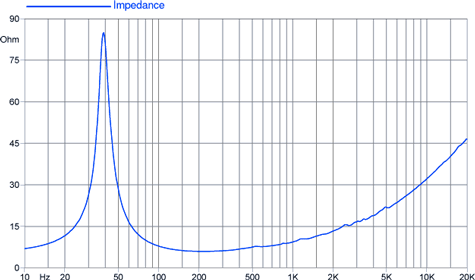

| Free Air Impedance Curve | |
 |
|
|

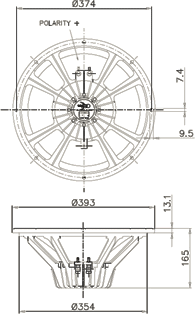

Mounting Dimensions |
|
|
|
|

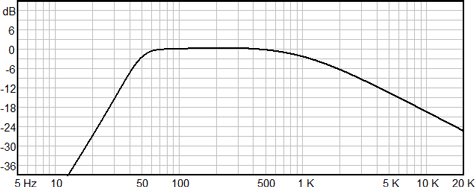

| BASS REFLEX(PORTED) SINGLE LARGE CABINET SIZE & FREQUENCY RESPONSE | |
 |
1 X15" LARGE SIZE CABINET SPECS |
|
|
| BASS REFLEX(PORTED) SINGLE MEDIUM CABINET SIZE & FREQUENCY RESPONSE | |
 |
1 X15" MEDIUM SIZE CABINET SPECS |
|
|
