FAITAL PRO 15FH500 - 15" WOOFER

EXCELLENT BASS GUITAR SPEAKER THAT SOUNDS SMOOTH WITH PUNCHY MIDS!

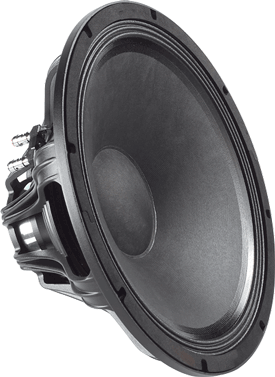

Faital Pro 15FH500

Item Price: $289.95

WOOFER MODEL 15FH500

Specifications

Nominal Basket Diameter 15" / 380mm
Impedance 8 ohms
AES Power Rating 500 Watts
Program Power 1,000 Watts
Frequency Response 35Hz - 3.15kHz
Sensitivity (1W/1m) 98dB SPL
Voice Coil Diameter 3" / 77mm
Voice Coil Length 22 mm
Air Gap Height 10.5 mm
X Damage (peak to peak) 16 mm
BL Factor 19.2 N/A

Mounting Information

Overall Diameter 15.47" / 393mm
Bolt Circle Diameter 14.72" / 374mm
Baffle Cutout Diameter-Front Mount 13.94" / 354mm
No. Of Mounting Holes 8
Overall Depth 7.14" / 181.3mm
Flange & gasket Thickness 0.54" / 13.7mm
Net Weight 9.7 lb. / 4.4 kg.
Shipping Weight 11 lb. / 5 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Copper
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 35 Hz
Impedance (Re) 5.1 ohms
Coil Inductance (Le) 1.3 mH
Mechanical Q (Qms) 10.4
Electrical Factor (Qes) .32
Total Q (Qts) .31
Comp. Equivelant Vol. (Vas) 7.68 ft3 / 217.5 Liters
Voice Coil Overhang (Xmax) 9.25 mm
Surface Area of Cone (Sd)m2 0.088m2
Reference Efficiency 2.8%
Diaphragm Mass (Mms) 104 Grams
Mechanical Compliance (Cms) .02 mm/N
Mechanical Resistance (Rms) 2.2 Kg/s

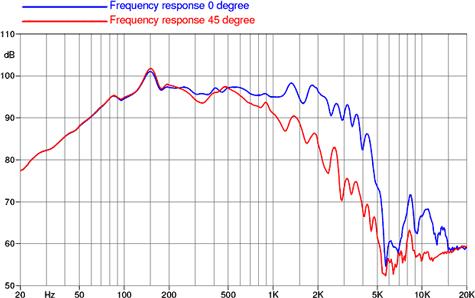

Frequency Response

Free Air Impedance Curve

Mounting Dimensions
