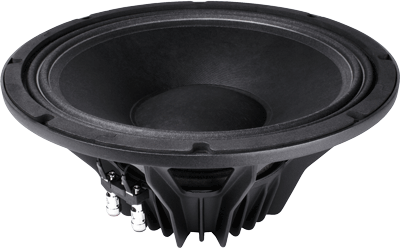

• THE FAITAL PRO 12PR300 12" WOOFER CAN HANDLE 300 WATTS AES & 600 WATTS PROGRAM POWER
• HIGH SENSITIVITY OF 99DB SPL, WIDE FREQUENCY RANGE FROM 50HZ TO 5.0KHZ & A GOOD 4.92MM XMAX FOR CLEAN SOUND
• NICE SMOOTH BASS W/ VERY CLEAN ARTICULATE MIDRANGE
• WEIGHS ONLY 5.3 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT AS A CLEAN TIGHT SOUNDING BASS GUITAR SPEAKER & 2 OR 3-WAY PA SPEAKER SYSTEMS
• AVAILABLE IN 4, 8 OR 16 OHMS

THE FAITAL PRO 12PR300 HAS A SMOOTH SOUNDING BASS & DETAILED CLEAN MIDS FROM THIS 300 WATT AES 12" SPEAKER!
	4 Ohm Version Item Price: $247.95
	8 Ohm Version Item Price: $247.95
	16 Ohm Version Item Price: $247.95
WOOFER MODEL	12PR300
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	4, 8 or 16 ohms
AES Power Rating	300 Watts
Program Power	600 Watts
Frequency Response	50Hz - 5.0kHz
Sensitivity (1W/1m)	99dB SPL
Voice Coil Diameter	2.5" / 65mm
Voice Coil Length	12.5 mm
Air Gap Height	8 mm
X Damage	14 mm
BL Factor	14.1 N/A
Mounting Information
Overall Diameter	12.4" / 315.2mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.16" / 283.5mm
No. Of Mounting Holes	8
Overall Depth	5.54" / 140.6mm
Flange & gasket Thickness	0.48" / 12.1mm
Net Weight	5.3 lb. / 2.4 kg.
Shipping Weight	6.6 lb. / 3.0 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	50 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	0.42 mH
Mechanical Q (Qms)	9.9
Electrical Factor (Qes)	.37
Total Q (Qts)	.36
Comp. Equivelant Vol. (Vas)	2.8 ft3 / 79.2 Liters
Voice Coil Overhang (Xmax)	4.92 mm
Surface Area of Cone (Sd)m2	0.0489m2
Reference Efficiency	2.6%
Diaphragm Mass (Mms)	43.4 Grams
Mechanical Compliance (Cms)	.23 mm/N
Mechanical Resistance (Rms)	1.37 Kg/s

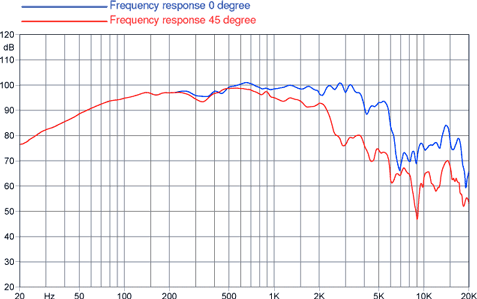

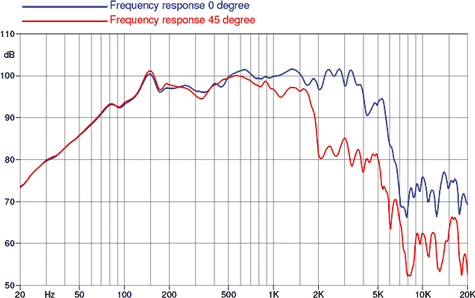

Frequency Response

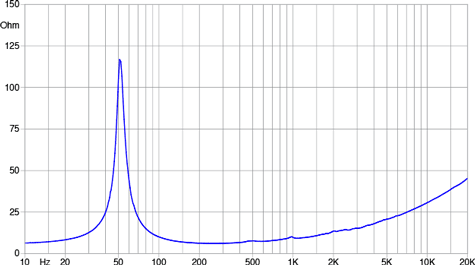

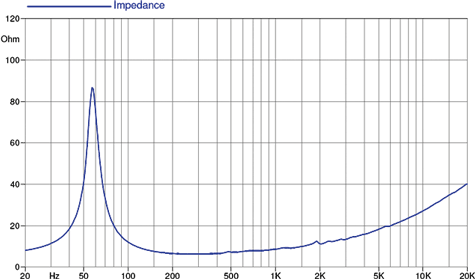

Free Air Impedance Curve

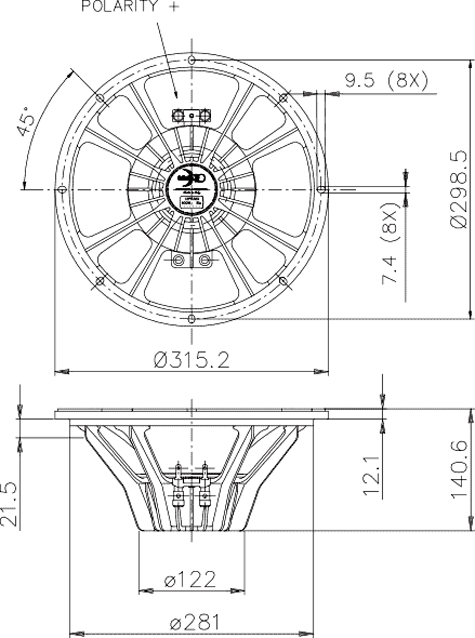

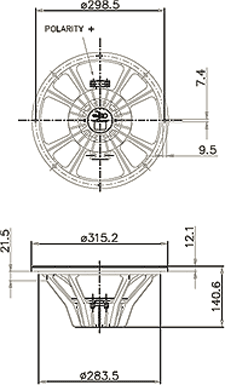

Mounting Dimensions
