FAITAL PRO 12FH500 - 12" HIGH POWER WOOFER

SMOOTH SOUNDING 12" THAT HANDLES 500 WATTS AES WITH A HIGH 7.25MM XMAX!

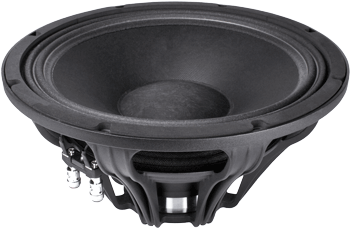

Faital Pro 12FH500

4 ohm version

Item Price: $259.95

8 ohm version

Item Price: $259.95

WOOFER MODEL 12FH500

Specifications

Nominal Basket Diameter 12" / 300mm
Impedance 4 or 8 ohms
AES Power Rating 500 Watts
Program Power 1,000 Watts
Frequency Response 45Hz - 4.0kHz
Sensitivity (1W/1m) 97dB SPL
Voice Coil Diameter 3" / 77mm
Voice Coil Length 18 mm
Air Gap Height 10.5 mm
X Damage (peak to peak) 16 mm
BL Factor 17.5 N/A

Mounting Information

Overall Diameter 12.44" / 316mm
Bolt Circle Diameter 11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount 11.12" / 282.5mm
No. Of Mounting Holes 8
Overall Depth 6.13" / 155.7mm
Flange & gasket Thickness 0.49" / 12.5mm
Net Weight 8.8 lb. / 4.0 kg.
Shipping Weight 10.1 lb. / 4.6 kg.

Materials

Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Former Material Glass Fiber
Voice Coil Copper
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 45 Hz
Impedance (Re) 5.1 ohms
Coil Inductance (Le) 0.83 mH
Mechanical Q (Qms) 6.9
Electrical Factor (Qes) .26
Total Q (Qts) .25
Comp. Equivelant Vol. (Vas) 2.69 ft3 / 76.2 Liters
Voice Coil Overhang (Xmax) 7.25 mm
Surface Area of Cone (Sd)m2 0.04904m2
Reference Efficiency 2.5%
Diaphragm Mass (Mms) 56 Grams
Mechanical Compliance (Cms) .22 mm/N
Mechanical Resistance (Rms) 3.24 Kg/s

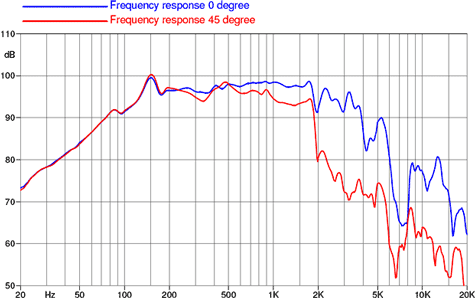

Frequency Response

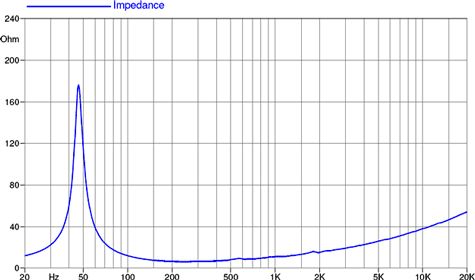

Free Air Impedance Curve

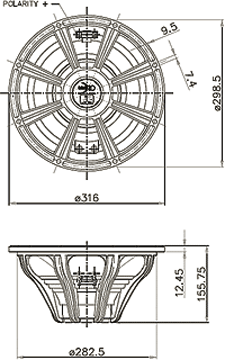

Mounting Dimensions
