• THE FAITAL PRO 10FH500 10" SPEAKER CAN HANDLE 500 WATTS AES & 1,000 WATTS PROGRAM POWER
• EFFICIENCY OF 96DB SPL & A HIGH 7.5MM XMAX FOR CLEAN STRONG SOUND & A WIDE FREQUENCY RANGE FROM 60HZ TO 4.0KHZ
• WEIGHS ONLY 7.5 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT AS AN UPGRADE FOR BASS GUITAR CABINETS AND CAN BE USED IN 2 OR 3-WAY HIGH POWER PA SPEAKER SYSTEMS
• AVAILABLE IN 4 OR 8 OHMS

THE FAITAL PRO 10FH500 10" LIGHTWEIGHT NEODYMIUM SPEAKER HAS A STRONG TIGHT BASS & GOOD MIDS WITH 500 WATTS AES POWER HANDLING!
	4 ohm version Item Price: $299.95
	8 ohm version Item Price: $299.95
WOOFER MODEL	10FH500
Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	4 or 8 ohms
AES Power Rating	500 Watts
Program Power	1,000 Watts
Frequency Response	60Hz - 4.0kHz
Sensitivity (1W/1m)	96dB SPL
Voice Coil Diameter	3" / 77mm
Voice Coil Length	18 mm
Air Gap Height	10.5 mm
X Damage	12.5 mm
BL Factor	17.9 N/A
Mounting Information
Overall Diameter	10.28" / 261mm
Bolt Circle Diameter	9.69" / 246mm
Baffle Cutout Diameter-Front Mount	9.06" / 230mm
No. Of Mounting Holes	8
Overall Depth	5.56" / 141.3mm
Flange & gasket Thickness	0.49" / 12.5mm
Net Weight	7.5 lb. / 3.4 kg.
Shipping Weight	8.8 lb. / 4.0 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	60 Hz
Impedance (Re)	5.1 ohms
Coil Inductance (Le)	0.85 mH
Mechanical Q (Qms)	3.28
Electrical Factor (Qes)	.28
Total Q (Qts)	.26
Comp. Equivelant Vol. (Vas)	0.81 ft3 / 22.9 Liters
Voice Coil Overhang (Xmax)	7.5 mm
Surface Area of Cone (Sd)m2	0.0328m2
Reference Efficiency	1.6%
Diaphragm Mass (Mms)	47 Grams
Mechanical Compliance (Cms)	.15 mm/N
Mechanical Resistance (Rms)	5.4 Kg/s

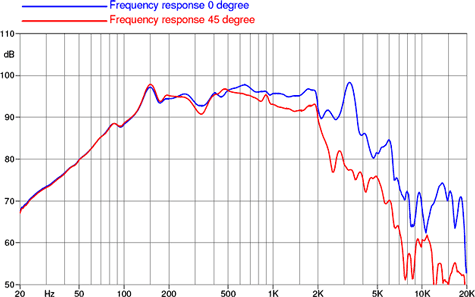

Frequency Response

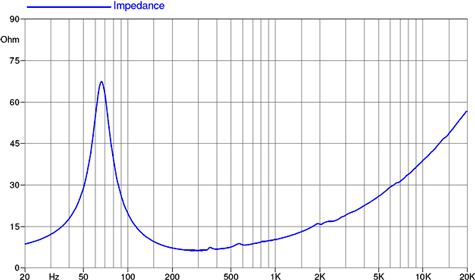

Free Air Impedance Curve

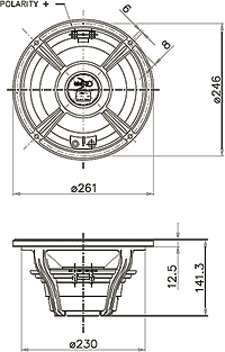

Mounting Dimensions
