Genuine Eminence
|
|
|
|
|
THIS 12" ALNICO GUITAR SPEAKER DELIVERS A CLEAR WARM PUNCHY SOUND! |
|
|
|
EJ1250-8 - 8 ohm version
Item Price: $289.99 |
|
EJ1250-16 - 16 ohm version
Item Price: $289.99 |
|
| SPEAKER MODEL | EJ1250 |
|
SPECIFICATIONS |
|
| Nominal Basket Diameter | 12" / 305mm |
| Impedance | 8 or 16 ohms |
| RMS Power Rating | 50 Watts |
| Peak Power Rating | 100 Watts |
| Usable Frequency Response | 80Hz-5.1kHz |
| Voice Coil Diameter | 1.75" / 44.5mm |
| Sensitivity (1W/1m) | 100.9dB |
| Magnet Weight | 35 oz. |
| Shipping Weight | 11.10lbs. / 5.0 kg. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.02" / 305.3mm |
| Bolt Circle Diameter | 11.63" / 295.3mm |
| Baffle Cutout Diameter | 10.97" / 278.6mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 6.22" / 157.98mm |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Copper |
| Coil Former Material | Paper |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Alnico |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 89.98 Hz |
| Impedance (Re) | 7.19 ohms |
| Coil Inductance (Le) | 0.62mH |
| Electromagnetic Q (Qes) | 0.65 |
| Mechanical Q (Qms) | 12.41 |
| Total Q (Qts) | .62 |
| Compliance Equiv. Vol. (Vas) | 44.96Liters / 1.59 cu. ft. |
| BL Product (BL) | 12.91 T-M |
| Voice Coil Overhang (Xmax) | 1.2mm |
| Surface Area of Cone (Sd) | .05195m2 |

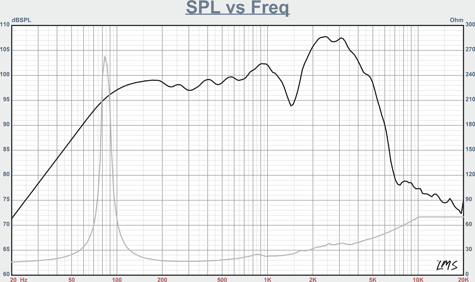

| FREQUENCY RESPONSE GRAPH | |
 |
|
