18NLW9600
|
|
18NLW9600 |
|

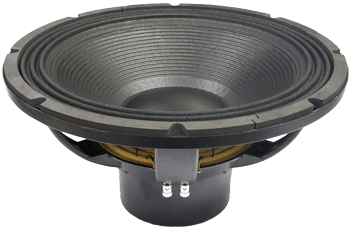

| 18" EXTREME POWER NEODYMIUM WOOFER |
|
TRIPLE SPIDER, 1,800 WATTS AES, 5.3" VOICE COIL, 14.0MM XMAX, BL FACTOR 30TM! |
|
|
|
4 Ohm Version IN STOCK
Item Price: $697.99 |
|
8 Ohm Version IN STOCK
Item Price: $697.99 |
|
|
WOOFER MODEL |
18NLW9600 |
|
Specifications |
|
|
Diameter |
18" |
|
Impedance |
8
ohms |
|
|
6.6 ohms |
|
AES
Power Rating |
1,800 Watts |
| Program Power | 3,600 Watts |
| Peak Power | 10,000 Watts |
|
Sensitivity
(1W/1m) |
96.5dB SPL |
|
Frequency
Response |
32Hz
- 2.5kHz |
| Recommended Crossover | 300Hz |
| Voice Coil Diameter |
5.32" / 135mm |
| BL Factor | 30 TM |
| Recommended Enclosure Volume | 3.88-12.36 cu. ft / 110-350Liters |
| Magnet | Neodymium |
|

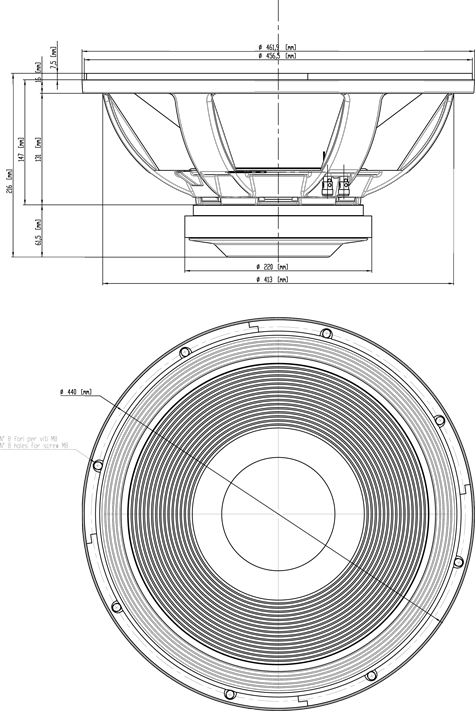

Mounting Information |
|
| Overall Diameter | 18.18" / 462mm |
| Bolt Circle Diameter | 17.32" / 440mm |
| Baffle Cutout Diameter | 16.38" / 416mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 9.3" / 237.5mm |
| Flange & Gasket Thickness | 1.02" / 26mm |
| Net Weight | 27.6 lbs. / 12.5 kg. |
| Shipping Weight | 30.9 lbs. / 14.0 kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 34 Hz |
| Impedance (Re) | 4.7 ohms |
| Coil Inductance (Le) | 2.11mH |
| Mechanical Q (Qms) | 8.7 |
| Electrical Factor(Qes) | .29 |
| Total Q (Qts) | .28 |
| Diaphragm Mass (Mms) | 261 grams |
| Comp. Equivelant Vol. (Vas) | 5.1 ft3 / 149 Liters |
| Voice Coil Overhang (Xmax) | 14.0mm |
| Surface Area of Cone (Sd)m2 | 0.1134m2 |
|

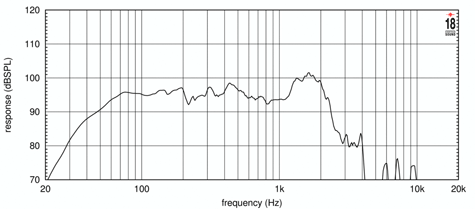

Frequency Response |
|
|
|
|
|
Free Air Impedance Curve |
|
|
|
|
