10M600
|
|
10M600 |
|
| 10" VERY HIGH OUTPUT MIDBASS |
|
EIGHTEEN SOUND 10M600 HAS A HIGH OUTPUT MIDBASS / MIDRANGE 10" SPEAKER THAT IS 102DB SPL! |
|
|
|
10M600 |
|
Item Price: $239.95 |
|
|
WOOFER MODEL |
10M600 |
|
Specifications |
|
|
Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
400 Watts |
| Program Power | 800 Watts |
|
Sensitivity
(1W/1m) |
102dB SPL |
|
Frequency
Response |
80Hz - 5.2kHz |
| Recommended Crossover | 3.0kHz |
| Voice Coil Diameter |
2.95"
/ 75mm |
| BL Factor | 23.5 TM |
| Recommended Enclosure Volume | .18-1.06 cu. ft / 5-30Liters |
| Magnet | Ferrite |
|
Mounting Information |
|
| Overall Diameter | 10.24" / 260mm |
| Bolt Circle Diameter | 9.63" / 244.5mm |
| Baffle Cutout Diameter | 9.13" / 232mm |
| Overall Depth | 4.95" / 126mm |
| Flange Thickness | .57" / 14.5mm |
| Net Weight | 16.23 lbs. / 7.35 kg. |
| Shipping Weight | 17.22 lbs. / 7.8 kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 70 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | 1.46mH |
| Mechanical Q (Qms) | 4.5 |
| Electrical Factor(Qes) | .25 |
| Total Q (Qts) | .23 |
| Comp. Equivelant Vol. (Vas) | .9 ft3 / 25.6 Liters |
| Voice Coil Overhang (Xmax) | 4.0mm |
| Surface Area of Cone (Sd)m2 | 0.035m2 |

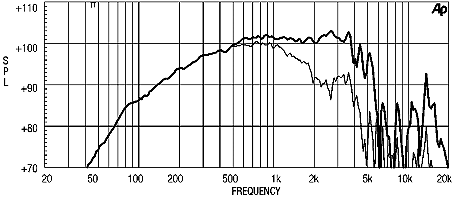

| Frequency Response In 30 Liter Enclosure | |
 |
|
