DEFINIMAX 4015LF - HIGH POWER WOOFER
|
|
|
DEFINIMAX 4015LF - HIGH POWER WOOFER |
|
THIS POWERFUL 15" TAKES A POUNDING, HANDLES 700 WATTS RMS & HAS A HIGH 9MM XMAX! |
|
|
|
Item Price: $239.99 New Low Price |
|
WOOFER MODEL |
DEFINIMAX 4015LF |
|
Specifications |
|
| Nominal Basket Diameter | 15" / 381mm |
| Impedance | 8 ohms |
| RMS Power Rating | 700 Watts |
| Program Power Rating | 1,400 Watts |
| Frequency Response | 35Hz - 1.2kHz |
|
Sensitivity (1W/1m) |
96dB |
| Voice Coil Diameter | 4" / 101.6mm |
| Gap Height | .375" / 9.53mm |
| Magnet Weight | 109 oz. / 3.1kg. |
| Rec. Enclosure Volume(Sealed) | 48-57 Liters / 1.7-2 cu. ft. |
| Rec. Enclosure Volume(Vented) | 82-181 Liters / 2.9-6.4 cu. ft. |
|
Mounting
Information |
|
| Overall Diameter | 15.21" / 386.4mm |
| Bolt Circle Diameter |
14.56" /
369.8mm |
|
Baffle Cutout
Diameter |
14.0" / 355.5 |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.275" / 7mm |
| Overall Depth | 6.56" / 166.7mm |
| Net Weight | 23.7lbs. / 10.8kg. |
| Shipping Weight | 26lbs. / 11.8kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 42 Hz |
| Impedance (Re) | 5.04 ohms |
| Coil Inductance (Le) | 1.49mH |
| Electromagnetic Q (Qes) | .54 |
| Mechanical Q (Qms) | 6.73 |
| Total Q (Qts) |
.5 |
| Compliance Equivalent Vol. (Vas) | 115.5 Liters/4.1cu. ft. |
| Voice Coil Overhang (Xmax) | 9.0mm |
| BL Factor (BL) | 18.4 T-M |
| Surface Area of Cone (Sd) | .08729 m2 |
|

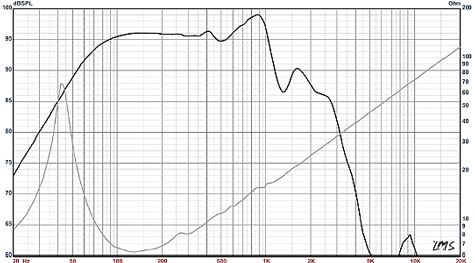

DEFINIMAX 4015LF RESPONSE CURVE |
|
|
|
|
