Genuine Eminence
DEFINIMAX 4012HO
|
|
|
DEFINIMAX 4012HO |
|
STRONG SOUNDING WOOFER W/ 600 WATTS RMS & 6.2MM XMAX! |
|
|
|
Item Price: $189.99 New Low Price |
|
WOOFER
MODEL |
DEFINIMAX 4012HO |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
600
Watts |
|
Frequency
Response |
49Hz
- 2.5kHz |
|
Sensitivity
(1W/1m) |
94dB |
|
Voice
Coil Diameter |
4"
/ 101.6mm |
|
Magnet
Weight |
109 oz. |
| Gap Height | .375" / 9.5mm |
| Rec. Enclosure Volume(Vented) | 1.3-2.8cu. ft./36-79 Liters |
| Rec. Enclosure Volume(Sealed) | 0.9-1.1cu. ft./26-31 Liters |
| Net Weight | 22.5lbs. / 10.2kg. |
| Shipping Weight | 29lbs. / 13.1kg. |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
12.38" / 314.3mm |
| Bolt Circle Diameter | 11.59" / 294.3mm |
| Baffle Cutout Diameter | 11.06" / 281mm |
| No. Of Mounting Holes | 8 |
|
Mounting
Hole Diameter |
0.28" / 7mm |
| Overall Depth | 5.32" / 135mm |
| Volume Displaced By Driver | 2.9 Liters / .10cu.ft. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 46 Hz |
|
Impedance
(Re) |
5.85 ohms |
| Coil Inductance (Le) | 1.17mH |
| Electromagnetic Q (Qes) | .38 |
| Mechanical Q (Qms) | 5.74 |
| Total Q (Qts) | .35 |
| Compliance Equivalent Vol. (Vas) | 59.4Liters/2.1cu. ft. |
| Voice Coil Overhang (Xmax) | 6.2mm |
| Surface Area of Cone (Sd) | .0552 m2 |
| BL Product (BL) | 19.6 |
| Peak Dia. Displacement Vol. (Vd) | 342cc |

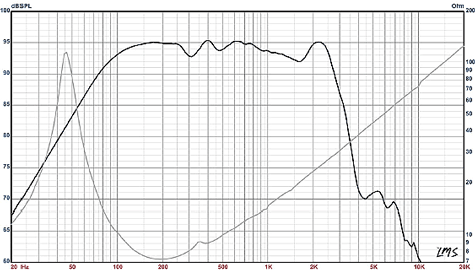

| DEFINIMAX 4012HO RESPONSE CURVE | |
 |
|
