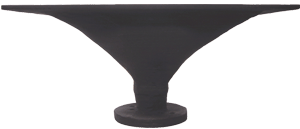

DDS CFD 1-90 PRO - 1" 90°x 40° HORN |
|
|
|
DDS CFD 1-90 PRO - 1" 90°x 40° HORN |
|
HIGH QUALITY FIBERGLASS HORN DELIVERS CRISP ACCURATE MIDS & HIGHS! |
|
|
|
|
|
No Longer Available |
|
|
HORN
MODEL |
CFD 1-90PRO |
|
SPECIFICATIONS |
|
|
Type |
Constant
Directivity |
|
Throat
Size |
1" / 25mm |
|
Dispersion |
90°H x 40°V |
| Sensitivity | 110.9dB (+5.9dB nominal gain) |
|
Frequency Response |
800Hz - 18kHz |
| Directivity Factor | 10.8 |
| Volume Displacement | .09 cu. ft. |
| Construction | Biaxial Stitched Fiberglass |
| Dampening Material | 3/8" Thick End Grain Balsa Wood |
|
Net Weight |
2.0
lbs. / 0.9 kg |
|
MOUNTING INFORMATION |
|
|
Overall
Width |
14.5" / 368.3mm |
| Overall Height | 8" / 203.2mm |
| Overall Depth | 6.75" / 171.5mm |
| Cutout Width | 12.5" / 317.5mm |
| Cutout Height | 6.0" / 152.4mm |
| Mounting Type | Bolt On |
| 2 Holes Equally Spaced On Diameter | 3.3" / 84.1 mm |
| 3 Holes Equally Spaced On Diameter | 2.24" / 57 mm |
|

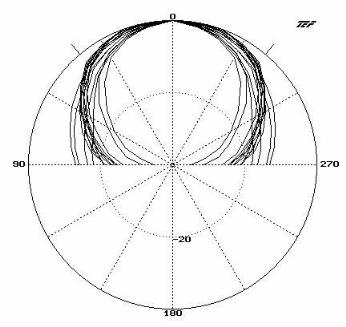

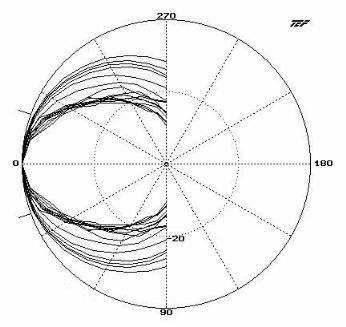

HORIZONTAL & VERTICAL POLAR RESPONSE |
|
630 Hz - 16kHz, 1/3 Octave Center Frequencies |
|
|
|
|
