DDS CFD 1-51 PRO - 1" 55°x 50° HORN

NICE SOUND & TIGHT COVERAGE WORKS WELL FOR STAGE MONITORS!



Blowout Sale Price $99.95

HORN MODEL

CFD 1-51PRO

SPECIFICATIONS

Type

Constant Directivity

Throat Size

1" / 25mm

Dispersion

57°H x 52°V
Sensitivity 108.8dB SPL

Frequency Response

1.0kHz - 16kHz
Directivity Factor 8.2
Volume Displacement .03 cu. ft.
Construction Biaxial Stitched Fiberglass
Dampening Material 3/8" Thick End Grain Balsa Wood

Net Weight

1.5 lbs.

MOUNTING INFORMATION
Overall Width

8.5" / 216mm
Overall Height 7" / 178mm
Overall Depth 4.75" / 121mm
Cutout Width 6.5" / 165.1mm
Cutout Height 5.0" / 127mm
Mounting Type Bolt On
2 Holes Equally Spaced On Diameter 3.3" / 84.1 mm
3 Holes Equally Spaced On Diameter 2.24" / 57 mm

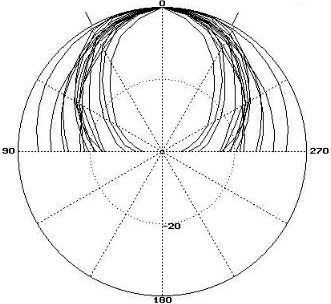

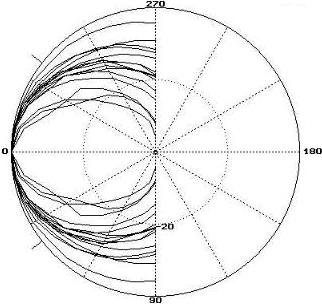

HORIZONTAL & VERTICAL POLAR RESPONSE

630 Hz - 16kHz, 1/3 Octave Center Frequencies

US Speaker, LLC
