NDC8-3 - 8" LIGHTWEIGHT POWERFUL SPEAKER
|
|
|
NDC8-3 - 8" LIGHTWEIGHT POWERFUL SPEAKER |
|
THIS 8" LIGHTWEIGHT SPEAKER HAS A HIGH 9.0MM XMAX & HANDLES A POWERFUL 600 WATTS! |
|
|
|
NOW IN STOCK!
Item Price: $219.95 |
|
SPEAKER
MODEL |
NDC8-3 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
8" |
|
Impedance |
8 ohms |
|
AES Power Rating |
300 Watts |
| Program Power | 600 Watts |
|
Frequency Response |
60Hz - 5kHz |
|
Sensitivity (1W/1m) |
92dB SPL |
|
Voice Coil Diameter |
3" / 75mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 8.23" / 209mm |
| Bolt Circle Diameter | 7.64" / 194mm |
| Baffle Cutout Diameter | 7.2" / 183mm |
| Depth | 5" / 127mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .197" / 5mm |
| Net Weight | 9.68 lbs./ 4.4 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Doped Paper |
| Suspension Material | Doped Nomex Fabric |
| Surround Shape | Two Roll |
| Suspension Material | Doped Nomex Fabric |
| Voice Coil | Aluminum |
| Former | Kapton |
| Magnet | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
67.6 Hz |
|
Impedance
(Re) |
5.58 ohms |
| Electrical Factor(Qes) | .53 |
| Mechanical Q (Qms) | 3.9 |
| Total Q (Qts) | .47 |
| Compliance Equiv. Vol. (Vas) | 11.04 Liters/.39 cu. ft. |
| Voice Coil Overhang (Xmax) | 9.0mm |
| BL Factor | 12.76 T-M |
| Diaphragm Mass (Mms) | 36.3 grams |
| Surface Area of Cone (Sd)m2 | 0.0227m2 |
| Reference Efficiency (%) | .62% |
| Coil Inductance (Le) | .4mH |

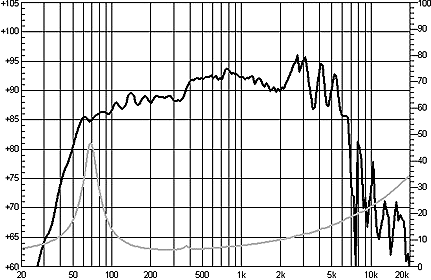

| FREQUENCY RESPONSE GRAPH | |
 |
|
