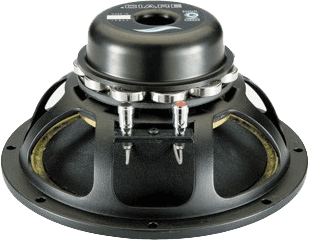

NDC10-2.5 - 10" LIGHTWEIGHT NEODYMIUM MID-BASS SPEAKER
|
|
|
NDC10-2.5 - 10" LIGHTWEIGHT NEODYMIUM MID-BASS SPEAKER |
|
THE CIARE NDC10-2.5 HAS FLAT SUPER SMOOTH MIDRANGE AND A STRONG TIGHT UPPER BASS SOUND! |
|
|
|
Item Price: $199.95 |
|
SPEAKER MODEL |
NDC10-2.5 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
10" |
|
Impedance |
8 ohms |
|
AES Power Rating |
250 Watts |
| Program Power | 500 Watts |
|
Frequency Response |
60Hz - 5kHz |
|
Sensitivity (1W/1m) |
95dB SPL |
|
Voice Coil Diameter |
2.5" / 64mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.24" / 260mm |
| Bolt Circle Diameter | 9.65" / 245mm |
| Baffle Cutout Diameter | 9.06" / 230mm |
| Depth | 5" / 127mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | .26" / 6.5mm |
| Net Weight | 10.12 lbs./ 4.6 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Doped Paper |
| Surround | Doped Nomex Fabric |
| Surround Shape | Two Roll |
| Suspension Material | Doped Nomex Fabric |
| Voice Coil | Aluminum |
| Former | Kapton |
| Magnet | Neodymium |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
70.8 Hz |
|
Impedance
(Re) |
5.5 ohms |
| Electrical Factor(Qes) | .52 |
| Mechanical Q (Qms) | 11.69 |
| Total Q (Qts) | .5 |
| Compliance Equiv. Vol. (Vas) | 20.21 Liters/.71 cu. ft. |
| Voice Coil Overhang (Xmax) | 7.5mm |
| BL Factor | 14.0 T-M |
| Diaphragm Mass (Mms) | 42 grams |
| Surface Area of Cone (Sd)m2 | 0.0346m2 |
| Reference Efficiency (%) | 1.32% |
| Coil Inductance (Le) | .31mH |

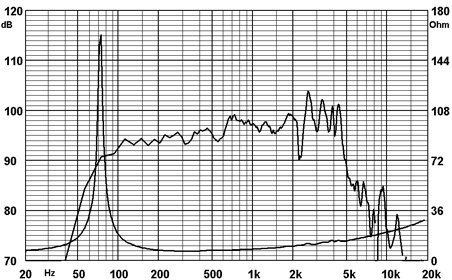

| FREQUENCY RESPONSE GRAPH | |
 |
|
