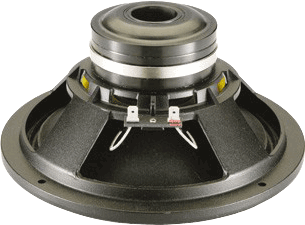

8.50NdW - 8" LIGHTWEIGHT MIDRANGE / MID-BASS SPEAKER
|
|
|
8.50NdW - 8" LIGHTWEIGHT MIDRANGE / MID-BASS SPEAKER |
|
THE CIARE 8.50NDW HAS A CLEAN LOUD MIDRANGE AND TIGHT STRONG UPPER BASS WITH GOOD POWER HANDLING OF 400 WATTS PROGRAM! |
|
|
|
No Longer Available. Replacement Ciare NDi8.50W |
|
SPEAKER
MODEL |
8.50NdW |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
8" |
|
Impedance |
8 ohms |
|
AES Power Rating |
200 Watts |
| Program Power | 400 Watts |
|
Frequency Response |
70Hz - 3kHz |
|
Sensitivity (1W/1m) |
96.5dB SPL |
|
Voice Coil Diameter |
2" / 50mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 8.19" / 208mm |
| Bolt Circle Diameter | 7.64" / 194mm |
| Baffle Cutout Diameter | 7.24" / 184mm |
| Depth | 3.82" / 97mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .197" / 5mm |
| Net Weight | 3.1 lbs./ 1.41 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Doped Paper |
| Surround | Doped Nomex Fabric |
| Surround Shape | Two Roll |
| Suspension Material | Doped Nomex Fabric |
| Voice Coil | Aluminum |
| Former | Kapton |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
75.7 Hz |
|
Impedance
(Re) |
6.07 ohms |
| Electrical Factor(Qes) | .36 |
| Mechanical Q (Qms) | 4.83 |
| Total Q (Qts) | .34 |
| Compliance Equiv. Vol. (Vas) | 17.56 Liters/.62 cu. ft. |
| Voice Coil Overhang (Xmax) | 6.25mm |
| BL Factor | 12.08 T-M |
| Diaphragm Mass (Mms) | 18.2 grams |
| Surface Area of Cone (Sd)m2 | 0.0227m2 |
| Reference Efficiency (%) | 2.04% |
| Coil Inductance (Le) | .46mH |

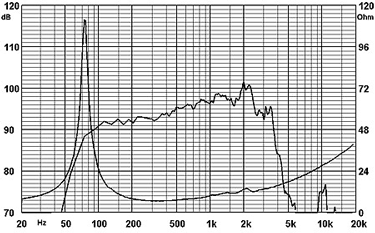

| FREQUENCY RESPONSE GRAPH | |
 |
|
