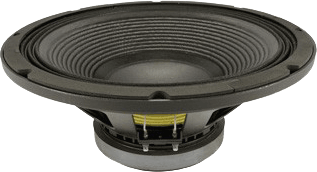

18.00 SW1 - 18" HIGH POWER SUBWOOFER
|
|
|
18.00 SW1 - 18" HIGH POWER SUBWOOFER |
|
GREAT IN SEALED OR OPEN BAFFLE SUBWOOFER DESIGNS THAT DELIVERS A SMOOTH BASS WITH A HIGH 11.5MM XMAX, & 2,000 WATTS POWER HANDLING! |
|
|
|
No Longer Available |
|
SPEAKER
MODEL |
18.00 SW1 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
18" |
|
Impedance |
8 ohms |
|
AES Power Rating |
1,000 Watts |
| Program Power | 2,000 Watts |
|
Frequency Response |
35Hz - 350Hz |
|
Sensitivity (1W/1m) |
96dB |
|
Voice Coil Diameter |
4" / 100mm |
| Winding Depth | 1.0" / 25mm |
| Magnetic Gap Depth | .5" / 12mm |
| Flux Density | 1.3T |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 18.1" / 460mm |
| Bolt Circle Diameter | 17.32" / 440mm |
| Baffle Cutout Diameter | 16.38" / 416mm |
| Depth | 7.17" / 182mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | .28" / 7.0mm |
| Net Weight | 28.4 lbs./ 12.9 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Cone | Doped Paper |
| Cone Shape | Straight |
| Surround | Doped Nomex Fabric |
| Surround Shape | 3 Roll |
| Suspension Material | Doped Nomex Fabric |
| Voice Coil | Copper |
| Former | Fiber Glass |
| Magnet | Ferrite |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
39.6Hz |
|
Impedance
(Re) |
5.98 ohms |
| Electrical Factor(Qes) | .6 |
| Mechanical Q (Qms) | 13.83 |
| Total Q (Qts) | .57 |
| Compliance Equiv. Vol. (Vas) | 154.14 Liters/5.44cu. ft. |
| Voice Coil Overhang (Xmax) | 11.5mm |
| BL Factor | 22.23 T-M |
| Diaphragm Mass (Mms) | .199 kg. |
| Surface Area of Cone (Sd)m2 | 0.1164m2 |
| Reference Efficiency | 1.54% |
| Coil Inductance (Le) | 0.9mH |

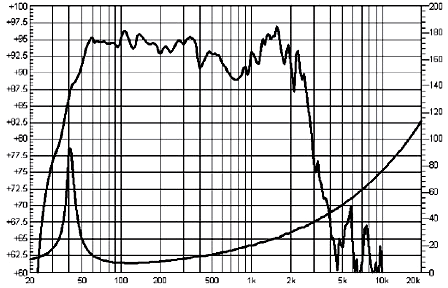

| SPL VS. FREQUENCY | |
 |
|
