1.38 TW - 1" HORN TWEETER
|
|
|
1.38 TW - 1" HORN TWEETER |
|
CLEAN NATURAL SOUND W/ A HIGH 150 WATTS AES POWER HANDLING! |
|
|
|
Item Price: $84.95 |
|
SPEAKER MODEL |
1.38TW |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
1.5" |
|
Impedance |
8 ohms |
|
AES Power Rating |
150 Watts |
|
Frequency Response |
2.5kHz - 20kHz |
|
Sensitivity (1W/1m) |
105dB |
|
Voice Coil Diameter |
1.5" / 38mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 5.9" / 150mm |
| Bolt Circle Diameter | 5.3" / 135mm |
| Baffle Cutout Diameter | 4" / 101.6mm |
| Depth | 2.5" / 63mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .2" / 5.0mm |
| Net Weight | 4.4 lbs./ 2 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Voice Coil | Copper |
| Former | Kapton |
| Magnet | Ferrite |

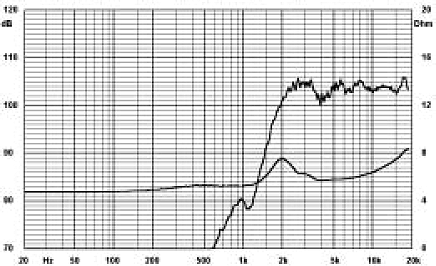

| SPL VS. FREQUENCY | |
 |
|
