1.26NdTW- 1" LIGHTWEIGHT TWEETER
|
|
|
1.26NdTW- 1" LIGHTWEIGHT TWEETER |
|
THE CIARE 1.26NdTW HAS VERY SMOOTH DETAILED HIGHS THATS WORKS WELL AS A TWEETER UPGRADE IN BASS CABINETS! |
|
|
|
Item Price: $138.75 |
|
SPEAKER MODEL |
1.26NdTW |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
1" |
|
Nominal Impedance |
8 ohms |
|
AES Power Rating |
20 Watts |
| Program Power Rating | 40 Watts |
|
Frequency Response |
2kHz - 20kHz |
|
Sensitivity (1W/1m) |
103dB SPL (±1.5 dB) |
|
Voice Coil Diameter |
1" / 26mm |
| Minimum Crossover Frequency | 2kHz @ 12 dB/oct. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 3.54" / 90mm |
| Bolt Circle Diameter | 2.89" / 73.5mm |
| Baffle Cutout Diameter | 2.3" / 58.4mm |
| Depth | 1.38" / 35mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .17" / 4.3mm |
| Net Weight | 1.21 lbs./ .55 kg. |
|
MATERIALS |
|
| Basket | Cast Aluminum |
| Voice Coil | Copper |
| Former | Nomex |
| Suspension Material | Aluminum |
| Suspension Shape | Flat |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (Fs) | 2.5kHz |
|
Voice Coil Impedance
(Re) |
6.5 ohms |
| Flux Density | 2T |

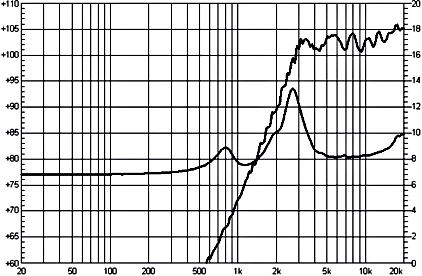

| FREQUENCY/IMPEDANCE RESPONSE | |
 |
|
