4592ND - 2" NEODYMIUM COAXIAL DRIVER
|
|
|
4592ND - 2" NEODYMIUM COAXIAL DRIVER |
|
ULTRA SMOOTH WARM SOUNDING COAXIAL HF DRIVER & WEIGHS ONLY 5 LBS! |
|
|
|

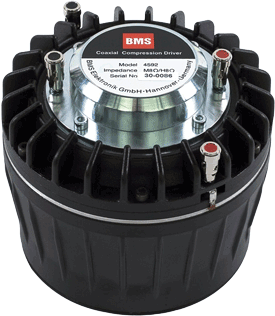

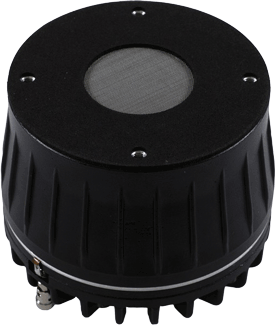

BMS 4592ND |
|
Item Price: $879.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8
ohms |
| Frequency Range | 300Hz - 22kHz |
| Sensitivity (1W/1m) | 118dB 1w @ 1m w/ 2242 horn |
| Sensitivity (1W/1m) | 112dB 1w @ 1m w/ 2230 horn |
|
Frequency Range |
|
| High Frequency | 6kHz to 22kHz |
| Mid Frequency Range | 300Hz - 7kHz |
|
High Frequency Power Rating |
|
|
|
80 Watts @ 6.3kHz |
| Peak | 320 Watts @ 6.3kHz |
|
Mid Frequency Power Rating |
|
|
|
150 Watts @ 400Hz |
| Peak | 1,000 Watts @ 500Hz |
|
Recommended Crossover |
|
| High Frequency | 6.3kHz @ 12dB/octave |
| Mid Frequency | 300 Hz @ 12dB/octave |
|
Voice Coil Diameter |
|
| High Frequency |
1.75"
/ 44.4mm |
| Mid Frequency |
3.5"
/ 90mm |
|
Flux Density |
|
| High Frequency | 2T |
| Mid Frequency | 1.95T |
| Efficiency | 35% (300Hz -5kHz) |
|
Mounting Information |
|
| Overall Diameter |
5.2" / 132mm |
|
Overall
Depth |
4.45" / 113mm |
| Mounting | |
| - 4 M6 threaded holes 90° apart on 4" diameter circle | |
| Net Weight | 5.06 lb. / 2.3 kg. |
|
Materials |
|
| Diaphragm | Polyester |
| Voice Coil Material | Copper Clad Aluminum (2 Layers) |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

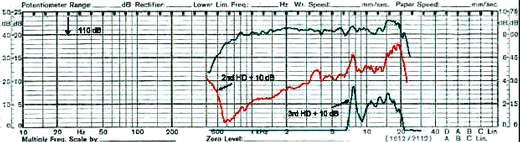

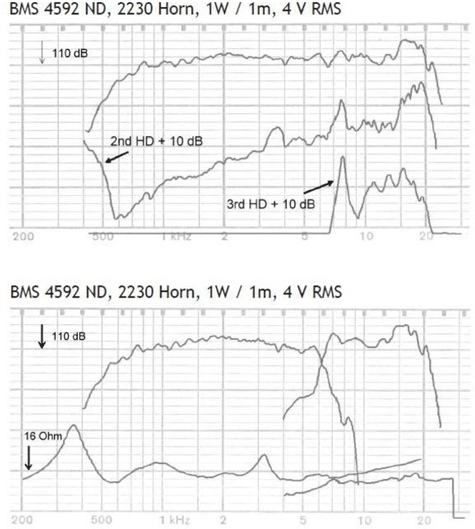

| FREQUENCY RESPONSE CURVE | |
 |
|
