4554 - 1.4" HIGH POWER HIGH FREQ. DRIVER
|
|
|
4554 - 1.4" HIGH POWER HIGH FREQ. DRIVER |
|
THIS 1.5" HF DRIVER DELIVERS HIGH EFFICIENCY SPL & POWER HANDLING! |
|
|
|
BMS 4554 |
|
8 Ohms
Item Price: $159.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
| Frequency Range | 500Hz - 20kHz |
| Recommended Crossover Frequency | 1.0kHz or higher |
| Sensitivity (1W/1m) | 118dB 1w@1m w/ Plane Wave Tube |
| Sensitivity (1W/1m) | 113dB 1w@1m w/ CD Horn |
| Maximum SPL | 132dB @ 80 Watts |
| Voice Coil Diameter | 1.75" / 44.4mm |
| Flux Density | 2.0 |
|
Mounting Information |
|
| Overall Diameter |
4.84" / 123mm |
|
Overall
Depth |
1.85" / 47mm |
| Mounting | |
| - (2) M6 threaded holes 180° apart on 3" diameter | |
| Net Weight | 4.95 lb. / 2.25 kg. |
|
Materials |
|
| Diaphragm | Polyester |
| Voice Coil Material | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |

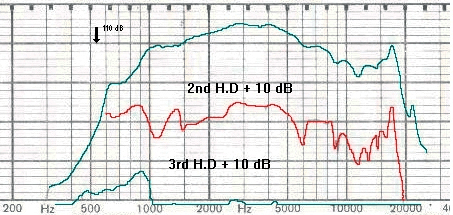

| Frequency Response - 1W @ 1M | |
 |
|
