BEYMA WL5 - 1.4" LINE ARRAY DRIVER
|
|
|
BEYMA WL5 - 1.4" LINE ARRAY DRIVER |
|
NEW 1.4" LINE ARRAY DRIVER SOUNDS EXTREMELY SMOOTH & WARM! |
|
|
|
BEYMA WL5 |
|
Item Price: $879.95/Pair |
|
|
LINE ARRAY DRIVER - WL5 |
|
|
Specifications |
|
|
Throat Diameter |
1.4" / 36mm |
|
Impedance |
8 ohms |
|
Minimum Impedance |
7.2 ohms @ 3.0 khz |
| D.C. Resistance | 5.5 ohms |
| AES Power Rating | 80 Watts (above 1kHz) |
| Program Power | 160 Watts (above 1kHz) |
| Sensitivity (1W/1m) | 108dB 1w@1m w/TD-385 horn |
|
Frequency Response |
600Hz - 20kHz |
| Recommended Crossover | 800 Hz or > @ 12dB/octave |
| Voice Coil Diameter | 2.87" / 72.2mm |
| Magnetic Assembly Weight | 4.62 lb. / 2.1 kg. |
| Flux Density | 2T |
| BL Factor | 11 N/A |
|
Mounting Information |
|
| Overall Diameter | 4.84" / 123mm |
| Overall Depth | 10.57" / 268.5mm |
| Mounting | |
| - 4 M6 threaded holes 90° apart on 4" diameter circle | |
| - mounting hardware is supplied | |
| Net Weight | 5.76 lb. / 2.62 kg. |
|
Materials |
|
| Waveguide | Synthetic Resin |
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

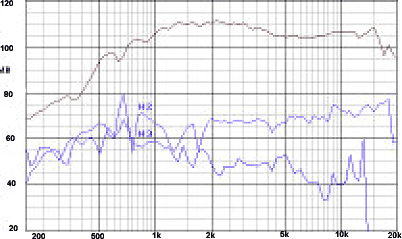

| FREQUENCY RESPONSE & DISTORTION CURVES W/ TD-385 | |
|
|
|
|

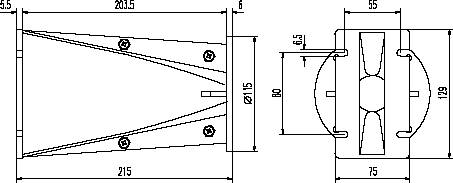

HORN MOUNTING INFORMATION |
|
 |
|

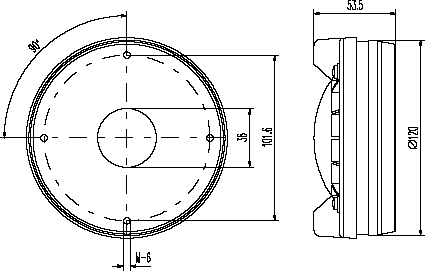

| DRIVER MOUNTING INFORMATION | |
 |
|
