COMPETITION SERIES
BEYMA POWER W6 - 6.5" SPEAKER
|
|
|
COMPETITION SERIES |
|
BEYMA POWER W6 - 6.5" SPEAKER |
|
THIS BEYMA 6.5" SPEAKER DELIVERS A VERY SMOOTH MIDS & BASS! |
|
|
|
BEYMA POWER W6 |
|
No Longer Available |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
4
ohms |
|
RMS
Power Rating |
100
Watts |
| Program Power |
200
Watts |
|
Frequency
Response |
45Hz - 4kHz |
|
Sensitivity
(1W/1m) |
89dB |
|
Voice
Coil Diameter |
1.5"
/ 38.1mm |
| Magnetic Assembly Weight | 4.4 lb. / 2.0 kg. |
|
Mounting Information |
|
|
Overall Diameter |
6.5" / 165mm |
|
Bolt Circle Diameter |
6.14" / 156mm |
| Baffle Cutout Diameter- | 5.7" / 145mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
3.35"
/ 85mm |
| Net Weight | 5 lb. / 2.275 kg. |
| Shipping Weight | 5.5 lb. / 2.5 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Kevlar |
| Surround | Rubber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 62 Hz |
| Impedance (Re) | 3.7 ohms |
| Coil Inductance (Le) | 0.4 mH |
| Mechanical Q (Qms) | 5.69 |
| Electrical Factor (Qes) | .54 |
| Total Q (Qts) | .59 |
| Comp. Equivelant Vol. (Vas) | .318 ft3 / 9 Liters |
| Voice Coil Overhang (Xmax) | 4.0 mm |
| Diaphragm Mass inc. Airload (Mms) | 16 grams |
| BL Factor | 6.7 N/A |
| Effective Surface Area (Sd) | 130 cm2 |
|

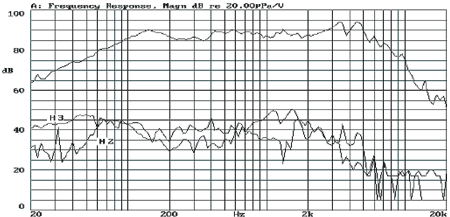

Low Frequency Response |
|
|
|
|
|

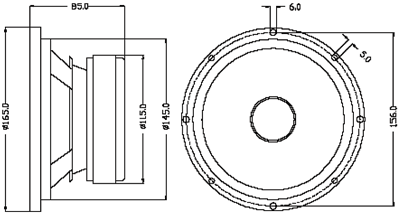

Mounting Dimensions |
|
|
|
|
