• THE NEW BEYMA TPL-75 PLEATED DIAPHRAGM TWEETER
• THE BEYMA TPL-75 IS DESIGNED TO HAVE VERY FLAT HIGHS FROM 1.5KHZ TO 23KHZ
• VERY DETAILED "BELL-LIKE" HIGHS THAT ARE EXTREMELY SMOOTH
• GOOD POWER HANDLING OF 40 WATTS AES @ 1.2KHZ & SENSITIVITY OF 92DB SPL
• DISPERSION IS 120°H x 20°V
• DELIVERS THE HIGHEST QUALITY HIGH FREQUENCY REPRODUCTION
• FOR USE IN HIGH END HOME THEATER SPEAKERS, STUDIO MONITOR PLAYBACK, ETC.

DELIVERS AN INCREDIBLY SMOOTH NATURAL SOUND WITH EXTENDED HIGHS TO 23KHZ LIKE A BERYLLIUM DIAPHRAGM!
	NEW BEYMA TPL-75
	Item Price: $393.75
TWEETER DRIVER MODEL  - TPL-75
Specifications
Impedance	8 ohms
D.C. Resistance	4.9 ohms
AES Power Rating	40 Watts above 1.2kHz
Program Power	80 Watts above 1.2kHz
Sensitivity (1W/1m)	92dB SPL
Frequency Response	1kHz - 23kHz
Dispersion	120°H x 20°V
Recommended Crossover	1.2 kHz or higher(12dB/oct)
Mounting Information
Overall Height	4.84" / 123mm
Overall Width	4.41" / 112mm
Overall Depth	1.38" / 35mm
Cutout Height	3.94" / 100mm
Cutout Width	3.94" / 100mm
Net Weight	1.54 lb. / .7 kg.
Shipping Weight	1.76 lb. / .8 kg.

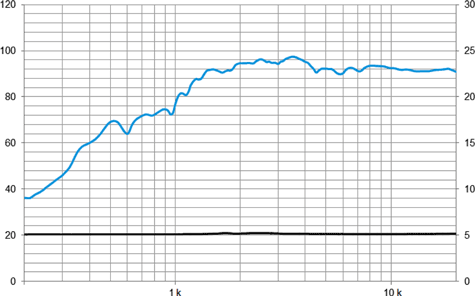

Frequency Response

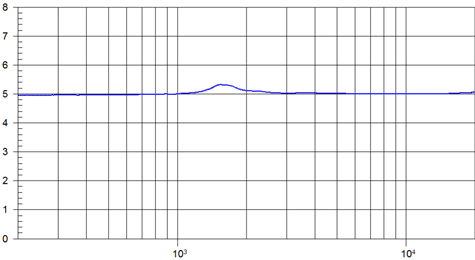

Free Air Impedance Curve

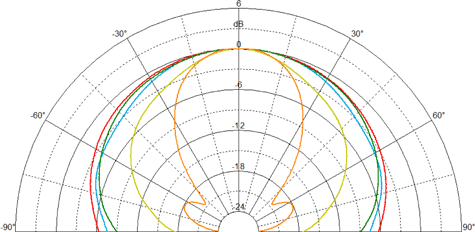

Horizontal Polar Pattern

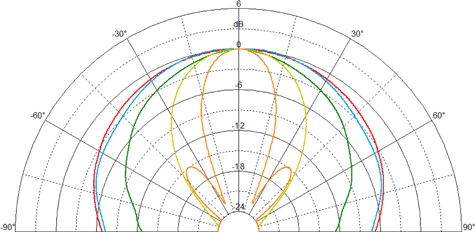

Vertical Polar Pattern
Drawing
