BEYMA SCW8 - 8" SUBWOOFER/WOOFER
|
|
|
|
|
BEYMA SCW8 - 8" SUBWOOFER/WOOFER |
|
8" SUBWOOFER HAS A 4.0MM XMAX W/ 500 WATTS POWER HANDLING! |
|
|
|
NO LONGER AVAILABLE |
|
WOOFER MODEL |
SCW8 |
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
150
Watts |
| Program Power |
300
Watts |
|
Frequency
Response |
35Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
92dB |
|
Voice
Coil Diameter |
1.5"
/ 38.5mm |
| Recom. Vented Enclosure Volume | .65 cu. ft.3 / 18 Liters |
| Recom. Sealed Enclosure Volume | 1.1 cu. ft.3 / 31 Liters |
| BL Factor | 7.7 N/A |
|
Mounting Information |
|
|
Overall Diameter |
8.2" /
208.6mm |
|
Bolt
Circle Diameter |
7.7"
/ 196mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.2" / 183mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
4.6"
/ 117mm |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | High Resistance Fiberglass |
| Surround | Rubber |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 42 Hz |
| Impedance (Re) | 3.5 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 4.46 |
| Electrical Factor (Qes) | .52 |
| Total Q (Qts) | .47 |
| Comp. Equivelant Vol. (Vas) | .99 ft3 / 28 Liters |
| Voice Coil Overhang (Xmax) | 4.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0215 |
| Reference Efficiency | .4% |
| Displacement Volume (Vd) | 86 cm3 |
| Mounting Dimensions | |
 |
|
|

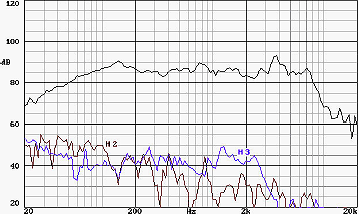

Frequency Response & Distortion Curves |
|
 |
|
