BEYMA SCW10 - 10" SUBWOOFER/WOOFER
|
|
|
|
|
BEYMA SCW10 - 10" SUBWOOFER/WOOFER |
|
10" SUBWOOFER HAS A 4.0MM XMAX W/ 400 WATTS POWER HANDLING! |
|
|
|
NO LONGER AVAILABLE |
|
WOOFER MODEL |
SCW10 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
200
Watts |
| Program Power |
400
Watts |
|
Frequency
Response |
30Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
90dB |
|
Voice
Coil Diameter |
2"
/ 51.7mm |
| Recom. Vented Enclosure Volume | 1.66 cu. ft.3 / 47 Liters |
| Recom. Sealed Enclosure Volume | 1.0 cu. ft.3 / 28 Liters |
| BL Factor | 9.8 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.63" / 270mm |
|
Bolt
Circle Diameter |
9.84"
/ 250mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.37" / 238mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
6.46"
/ 164mm |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | High Resistance Fiberglass |
| Surround | Rubber |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 47 Hz |
| Impedance (Re) | 3.5 ohms |
| Coil Inductance (Le) | .9 mH |
| Mechanical Q (Qms) | 5.82 |
| Electrical Factor (Qes) | .65 |
| Total Q (Qts) | .59 |
| Comp. Equivelant Vol. (Vas) | 1.09 ft3 / 31 Liters |
| Voice Coil Overhang (Xmax) | 4.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0345 |
| Reference Efficiency | .5% |
| Displacement Volume (Vd) | 137 cm3 |
| Mounting Dimensions | |
 |
|
|

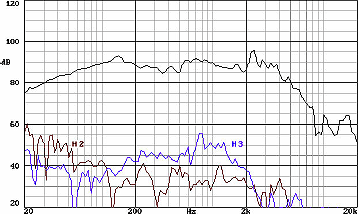

Frequency Response & Distortion Curves |
|
 |
|
