BEYMA SC-500 - 5.25" WOOFER
|
|
|
|
|
BEYMA SC-500 - 5.25" WOOFER |
|
5.25" SPEAKER HAS A 3.0MM XMAX W/ 120 WATTS POWER HANDLING! |
|
|
|
No Longer Available |
|
WOOFER MODEL |
SC-500 |
|
Specifications |
|
|
Nominal
Basket Diameter |
5.25" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
60
Watts |
| Program Power |
120
Watts |
|
Frequency
Response |
60Hz
- 6kHz |
|
Sensitivity
(1W/1m) |
90dB |
|
Voice
Coil Diameter |
1" / 25mm |
| BL Factor | 3.1 N/A |
|
Mounting Information |
|
|
Overall Diameter |
5.25"
/ 130mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 4.65" / 118mm |
| No. Of Mounting Holes | 4 |
|
Overall
Depth |
2.09"
/ 53mm |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | High Resistance Fiberglass |
| Surround | Rubber |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 70 Hz |
| Impedance (Re) | 3.3 ohms |
| Coil Inductance (Le) | .3 mH |
| Mechanical Q (Qms) | 3.4 |
| Electrical Factor (Qes) | 1.42 |
| Total Q (Qts) | 1.0 |
| Comp. Equivelant Vol. (Vas) | .19 ft3 / 5.5 Liters |
| Voice Coil Overhang (Xmax) | 1.5 mm |
| Surface Area of Cone (Sd)m2 | 0.0085 |
| Reference Efficiency | .2% |
|

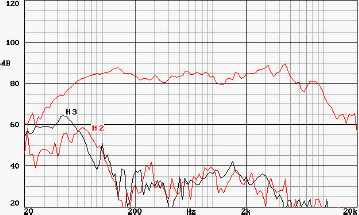

Frequency Response & Distortion Curves |
|
 |
|
