COMPETITION SERIES
BEYMA PRO 10MI - 10" MID-BASS SPEAKER
|
|
|
COMPETITION SERIES |
|
BEYMA PRO 10MI - 10" MID-BASS SPEAKER |
|
THIS BEYMA 10" MID-BASS HAS VERY HIGH SPL OF 101DB W/ 700 WATTS POWER HANDLING! |
|
|
|
Item Price: $297.95/Each |
|
WOOFER MODEL |
PRO 10MI |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
70Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
3" / 77mm |
| BL Factor | 15.8 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.24" / 260mm |
|
Bolt
Circle Diameter |
9.6"
/ 244mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 8.98" / 228mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
4.9"
/ 124mm |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 46 Hz |
| Impedance (Re) | 3.7 ohms |
| Coil Inductance (Le) | 1.3 mH |
| Mechanical Q (Qms) | 7.24 |
| Electrical Factor (Qes) | .17 |
| Total Q (Qts) | .17 |
| Comp. Equivelant Vol. (Vas) | 2.19 ft3 / 62 Liters |
| Surface Area of Cone (Sd)m2 | 0.038 |
| Reference Efficiency | 3.5% |
| Mounting Dimensions | |
 |
|
|

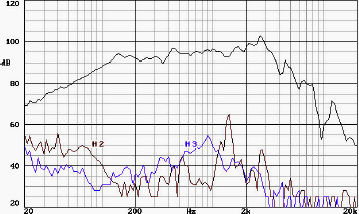

Frequency Response & Distortion Curves |
|
 |
|
