BEYMA MC115 - SOFT DOME MIDRANGE
|
|
|
BEYMA MC115 - SOFT DOME MIDRANGE |
|
SMOOTH SOFT DOME MIDRANGE IN AN ATTRACTIVE BRUSHED ALUMINUM FINISH! |
|
|
|
No Longer Available |
|
MODEL |
|
|
Specifications |
|
| Nominal Diameter | 62mm / 2.5" |
|
Impedance |
8
ohms |
|
|
7.8 ohms @ 1.5 khz |
| D.C. Resistance | 6.13 ohms |
|
RMS
Power Rating |
25 Watts |
| Program Power | 50 Watts |
|
Sensitivity
(1W/1m) |
91dB 1w @ 1m |
|
Frequency
Response |
600Hz
- 12.5kHz |
| Recommended Crossover | 800Hz - 12dB or higher |
| Dispersion (H x V) | 120° |
| Voice Coil Diameter |
1.75"
/ 44.3mm |
| Magnetic Assembly Weight | 2.33 lb. / 1.06 kg. |
| Flux Density | 1.1T |
| BL Factor | 7.1 N/A |
|
Mounting Information |
|
| Overall Diameter | 5.5" / 140mm |
| Overall Depth | 1.57" / 40mm |
| Bolt Circle Diameter | 5.04" / 128mm |
| Baffle Cutout Dimensions | 4.52" / 115mm |
|
Net
Weight |
2.75 lb. / 1.25 kg. |
|
Materials |
|
| Diaphragm | Plasticised Fabric |
| Voice Coil | Copper |
| Voice Coil Former | Aluminum |
| Front Cover | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant frequency (fs) | 620Hz |
| Mechanical Factor (Qms) | 4.894 |
| Electrical Factor (Qes) | 1.464 |
| Total Q (Qts) | 1.127 |
|
Freq. Response & Distortion Curves, MAGNITUDE: On axis, 1w @ 1m |
|
|
|
|
|

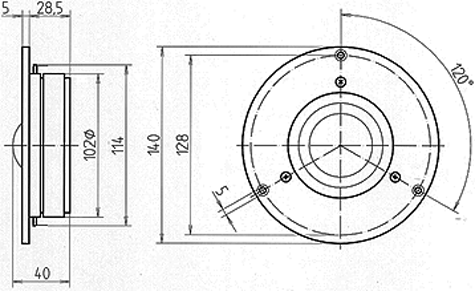

Dimensional Drawing |
|
|
|
|
