TD-385 - 1.4" 80°x 50° Horn
|
|
|
TD-385 - 1.4" 80°x 50° Horn |
|
NATURAL SOUNDING CAST ALUMINUM 1.4" HORN WITH AN 80°x 50° HORN DISPERSION! |
  |
 Item Price: $119.95 |
| HORN MODEL | BEYMA TD-385 |
| SPECIFICATIONS | |
| Type | Constant Directivity |
| Throat Size | 1.4" / 36mm |
| Dispersion | 80°H x 50°V |
| Lowest Rec. Crossover | 800Hz |
| Directivity Factor | 12.4 |
| Construction | Cast Aluminum |
| Net Weight | 2.64 lbs. / 1.2kg |
| Shipping Weight | 3.37 lbs. / 1.53kg |
|
MOUNTING INFORMATION |
|
|
Overall
Width |
9.25"
/ 235mm |
|
Overall
Height |
9.25" / 235mm |
|
Overall
Depth |
4.72" / 120mm |
| Cutout Width | 8.03" / 204mm |
|
Cutout
Height |
7.95" / 202mm |
| Mounting Type | Bolt On |
| 4 Holes Equally Spaced On Diameter | 4" / 101mm |
|

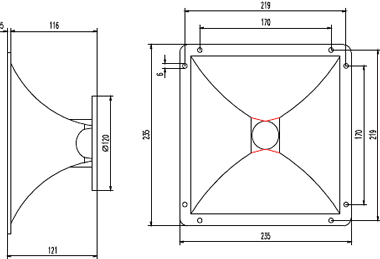

HORN DRAWING |
|
 |
|

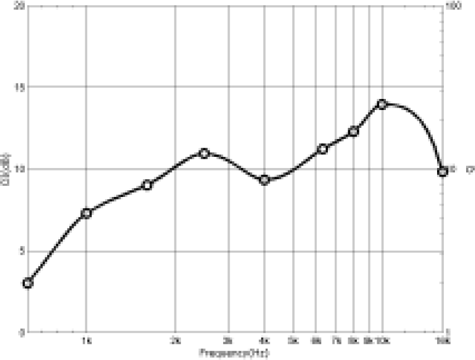

| DIRECTIVITY | |
 |
|

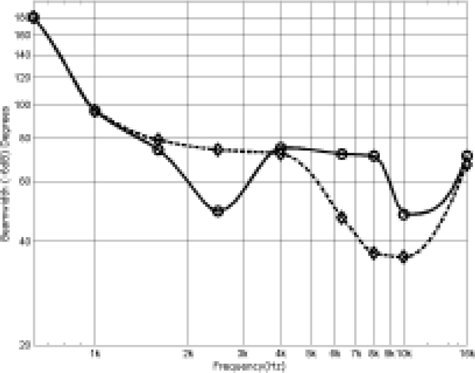

| -6dB BEAMWIDTH | |
|
|
|
