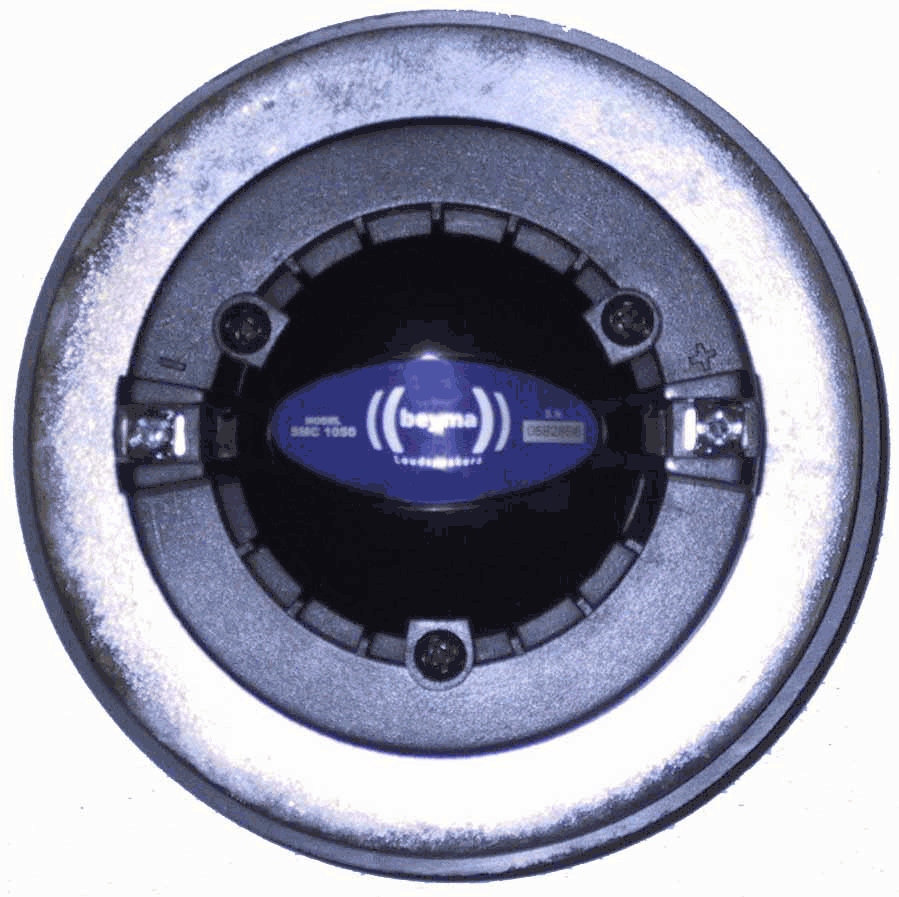

BEYMA SMC-1050 - 1" HIGH FREQUENCY DRIVER
|
|
|
BEYMA SMC-1050 - 1" HIGH FREQUENCY DRIVER |
THIS 1" HIGH FREQUENCY COMPRESSION DRIVER FEATURES A DOME & SURROUND FORMED FROM PURE TITANIUM
MYLAR DIAPHRAGM FOR SOFTER HIGHS
INCREDIBLE CLARITY & DEFINITION WITH A VERY SMOOTH RESPONSE
EXCEPTIONAL HIGH OUTPUT WITH LOW DISTORTION & EXTENDED HIGH FREQUENCY RESPONSE
FOR ALL HIGH POWER HIGH FREQUENCY APPLICATIONS INCLUDING P.A. SYSTEMS, SOUND REINFORCEMENT, ETC.
|
|
BEYMA SMC-1050 |
|
Item Price: $159.00
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
| D.C. Resistance | 5.6 ohms |
|
RMS
Power Rating |
40 Watts above 1.0kHz |
| Program Power | 80 Watts above 1.0kHz |
|
Sensitivity
(1W/1m) |
104dB 1w @ 1m w/ TD-250 horn |
|
Frequency
Response |
800Hz
- 17kHz |
| Recommended Crossover | 1.0 kHz or higher, 12dB/octave |
| Voice Coil Diameter |
1.75"
/ 44.4mm |
| Magnetic Assembly Weight | 5.95 lb. / 2.7 kg. |
| Flux Density | 1.96T |
| BL Factor | 9.3 N/A |
|
Mounting Information |
|
|
Overall Diameter |
5.27"
/ 134mm |
|
Overall
Depth |
2.2"
/ 56mm |
|
Mounting |
|
| - 3 M-5 threaded holes 120° apart on 2.24" diameter circle | |
| - OR 2 M5 threaded holes 180° apart on 3" diameter circle | |
| - mounting hardware is supplied | |
|
Shipping Weight |
7.8 lb. / 3.55 kg. |
|
Materials |
|
|
Diaphragm |
Mylar |
|
Voice Coil |
Flat Aluminum Wire |
|
Voice Coil Former |
Kapton |
| Magnet | Ferrite |
