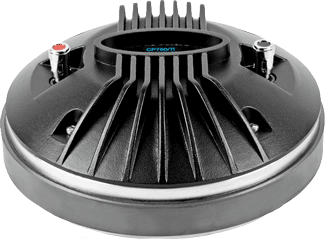

BEYMA CP-750Ti - 2" EXIT HIGH FREQUENCY DRIVER
|
|
|
BEYMA CP-750Ti - 2" EXIT HIGH FREQUENCY DRIVER |
|
THE BEYMA CP-750TI 2" DRIVER DELIVERS A POWERFUL CLEAN SOUND WITH STRONG MIDS & GOOD HIGHS! |
|
|
|
BEYMA CP-750Ti |
|
Item Price: $297.75 New Low Price |
|
|
Replacement Diaphragm - CP-750Ti-8Dia
|
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8
ohms |
|
|
7.4 ohms @ 3.5 khz |
| D.C. Resistance | 5.5 ohms |
|
AES
Power Rating |
70 Watts @ 800Hz |
|
AES
Power Rating |
90 Watts above 1.5kHz |
| Program Power | 140 Watts @ 800Hz |
| Program Power | 180 Watts above 1.5kHz |
|
Sensitivity
(1W/1m) |
110dB 1w @ 1m w/ TD-460N horn |
|
Frequency
Response |
600Hz
- 20kHz |
| Recommended Crossover | 800 Hz or higher, 12dB/octave |
| Voice Coil Diameter |
2.87" / 72.2mm |
| Magnetic Assembly Weight | 14.33 lb. / 6.5 kg. |
| Flux Density | 1.9T |
| BL Factor | 10 N/A |
|
Mounting Information |
|
| Overall Diameter |
7.56" / 192mm |
|
Overall
Depth |
3.46" / 88mm |
| Mounting | 4 M6 threaded holes 90° apart on 4" diameter circle |
| Net Weight | 15.51 lb. / 7.05 kg. |
| Shipping Weight | 16.06 lb. / 7.3 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |

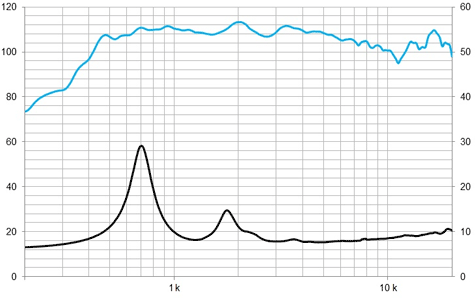

| FREQUENCY RESPONSE & IMPEDANCE CURVES W/ TD-460N | |
 |
|

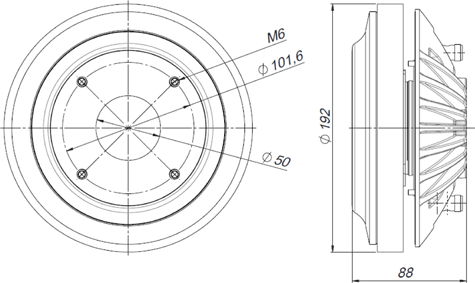

| MOUNTING INFORMATION | |
 |
|
