BEYMA 8CX300FE- 8" COAXIAL SPEAKER
|
|
|
BEYMA 8CX300FE- 8" COAXIAL SPEAKER |
|
BEYMA 8CX300Fe COAXIAL SPEAKER HAS PRECISE TIME ALIGNMENT W/ A TIGHT BASS AND CLEAN DETAILED MIDS & HIGHS! |
|
|
|
BEYMA 8CX300Fe |
|
Item Price: $294.95 |
|
|
COAXIAL MODEL |
8CX300Fe |
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
16 ohms |
|
Impedance |
8 ohms |
|
AES
Power Rating |
300
Watts |
| Program Power (LF) |
500
Watts |
|
AES
Power Rating |
50 Watts AES |
| Program Power (HF) | 100 Watts AES |
|
Frequency Response |
90Hz
- 20kHz |

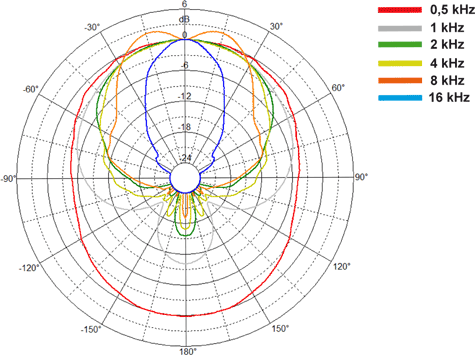

| HF Frequency Dispersion |
70º
|
|
Sensitivity
(1W/1m) |
96dB |
|
Sensitivity
(1W/1m) |
104dB SPL |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
|
Voice
Coil Diameter |
1.75" / 44.5mm |
| Recom. Crossover Frequency | 1.8kHz or higher @ 12dB/oct. |
| Voice Coil Length | 15 mm |
| Air Gap Height | 7 mm |
| BL Factor | 9.6 N/A |
|

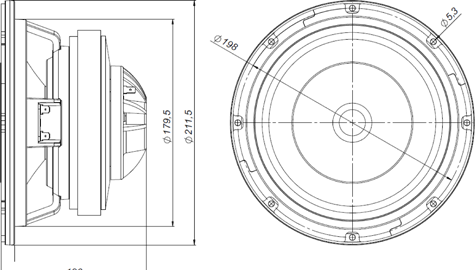

Mounting Information |
|
|
Overall Diameter |
8.33"
/ 211.5mm |
| Bolt Circle Diameter |
7.81"
/ 198.3mm |
| Baffle Cutout Diameter | 7.07" / 179.5mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
4.92"
/ 125mm |
|
Net
Weight |
10.14 lb. / 4.6 kg. |
| Shipping Weight | 10.8 lb. / 4.9 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Carbon Fiber Loaded Paper |
| Surround | Treated Cloth |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | PM-4 |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 89 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 4.2 |
| Electrical Factor (Qes) | .63 |
| Total Q (Qts) | .55 |
| Comp. Equivalent Vol. (Vas) | .38 ft3 / 10.8 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Reference Efficiency | 1.2% |
| Moving Mass (Mms) | 20 Grams |
|

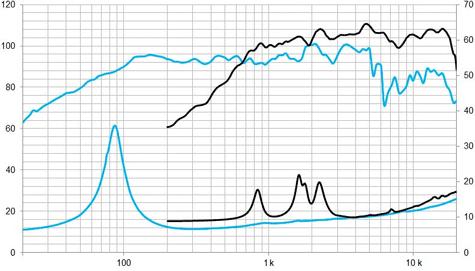

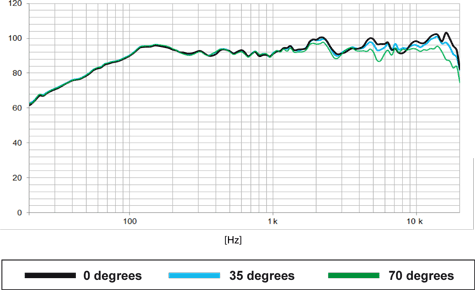

Frequency Response & Distortion Curves |
|
|
|
|
|
Free Air Impedance |
|
|
|
|
