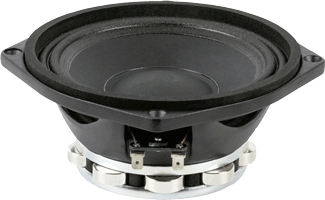

BEYMA 6G40Nd - NEODYMIUM 6.5" MID-BASS / MIDRANGE SPEAKER
|
|
|
BEYMA 6G40Nd - NEODYMIUM 6.5" MID-BASS / MIDRANGE SPEAKER |
|
THE BEYMA 6G40ND DELIVERS A SMOOTH MID-BASS SOUND WITH GOOD POWER HANDLING OF 340 WATTS PROGRAM! |
|
|
|
BEYMA 6G40ND |
|
Item Price: $154.95
|
|
|
WOOFER MODEL - 6G40Nd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
170 Watts |
| Program Power | 340 Watts |
|
Frequency Response |
70Hz - 9.0KHz |
|
Sensitivity (1W/1m) |
95dB |
|
Voice Coil Diameter |
2" / 51.7mm |
| Voice Coil Length | 9mm |
| Air Gap Height | 7mm |
| X Damage (peak to peak) | 20mm |
| Bl Factor (BL) | 11 N/A |
| Magnetic Assembly Weight | 3.3 lb. / 1.5 kg. |
| Mounting Information | |
| Overall Diameter | 7.38" / 187.5mm |
| Bolt Circle Diameter | 6.77" / 172mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.74" / 146mm |
| - Rear Mount | 5.74" / 146mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.019 ft3 / .5 Liters |
| Overall Depth | 2.97" / 75.5mm |
| Net Weight | 3.74 lb. / 1.7 kg. |
| Shipping Weight | 5.06 lb. / 2.3 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Foam |
| Voice Coil | Aluminum Wire |
| Former | Fiberglass |
| Metal Parts | Anti-Corrosion |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 88 Hz |
| Impedance (Re) | 6.2 ohms |
| Coil Inductance (Le) | .6 mH |
| Mechanical Q (Qms) | 9.1 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .33 |
| Comp. Equivalent Vol. (Vas) | .25 ft3 / 7.2 Liters |
| Voice Coil Overhang (Xmax) | 1.0 mm |
| Reference Efficiency | 1.4% |
| Displacement Volume | 14 cm3 |
|

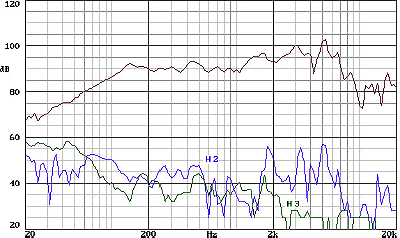

FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
|
MOUNTING INFORMATION |
|
 |
|
