BEYMA 6G40Fe - 6.5" LINE ARRAY SPEAKER
|
|
|
BEYMA 6G40Fe - 6.5" LINE ARRAY SPEAKER |
|
SMOOTH SOUND FROM THIS POWERFUL 6.5" LINE ARRAY SPEAKER! |
|
|
|
BEYMA 6G40Fe |
|
Item Price: $129.95 |
|
|
WOOFER MODEL - 6G40Fe |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
170 Watts |
| Program Power | 340 Watts |
|
Frequency Response |
70Hz - 9.0KHz |
|
Sensitivity (1W/1m) |
94.3dB |
|
Voice Coil Diameter |
2" / 51.7mm |
| Voice Coil Length | 9.2mm |
| Air Gap Height | 7mm |
| X Damage (peak to peak) | 37.8mm |
| Bl Factor (BL) | 11 N/A |
| Magnetic Assembly Weight | 6.24 lb. / 2.83 kg. |
| Mounting Information | |
| Overall Diameter | 7.38" / 187.5mm |
| Bolt Circle Diameter | 6.77" / 172mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.74" / 146mm |
| - Rear Mount | 5.74" / 146mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.019 ft3 / .5 Liters |
| Overall Depth | 3.21" / 81.5mm |
| Net Weight | 6.7 lb. / 3.02 kg. |
| Shipping Weight | 6.88 lb. / 3.12 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Foam |
| Voice Coil | Aluminum Wire |
| Former | Fiberglass |
| Metal Parts | Anti-Corrosion |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 102 Hz |
| Impedance (Re) | 6.0 ohms |
| Coil Inductance (Le) | .5 mH |
| Mechanical Q (Qms) | 9.25 |
| Electrical Factor (Qes) | .42 |
| Total Q (Qts) | .4 |
| Comp. Equivalent Vol. (Vas) | .18 ft3 / 5.04 Liters |
| Voice Coil Overhang (Xmax) | 3.1 mm |
| Moving Mass (Mms) | 13 Grams |
| Reference Efficiency | 1.24% |
| Displacement Volume | 14 cm3 |
|

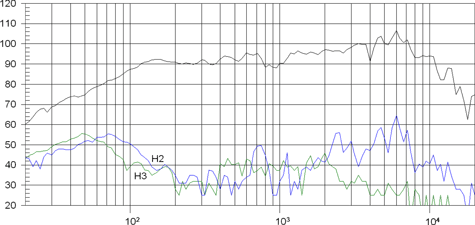

FREQUENCY RESPONSE & DISTORTION CURVES |
|
 |
|

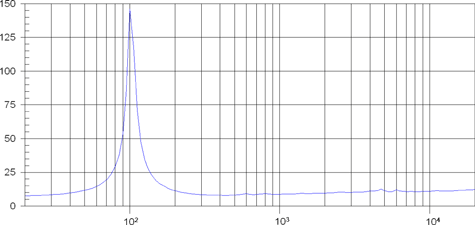

| IMPEDANCE GRAPH | |
|
|
|
|

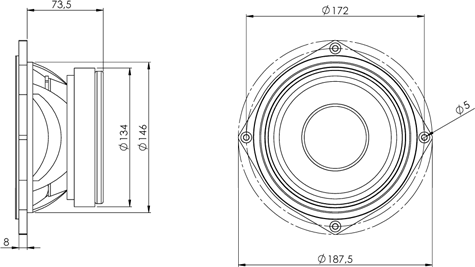

MOUNTING INFORMATION |
|
 |
|
