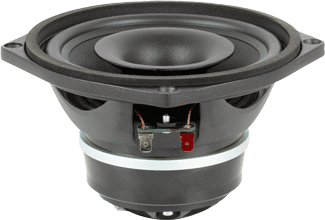

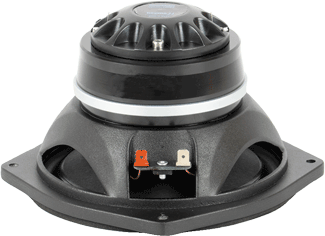

BEYMA 6CX200Nd/N - 6.5" COAXIAL SPEAKER

NEW BEYMA 6CX200Nd/N COAXIAL SPEAKER HAS PRECISE TIME ALIGNMENT AND IS VERY SMOOTH & DETAILED SOUNDING!

Beyma 6CX200NdNBeyma 6CX200NdN 6.5 inch coax

NEW BEYMA 6CX200Nd/N

Item Price: $389.95

Beyma 6CX200Nd/N High Frequency Diaphragm    Item Price: $79.95

COAXIAL MODEL

6CX200Nd/N

Specifications

Nominal Basket Diameter

6.5" / 165mm

Impedance

8 ohms

AES Power Rating

200 Watts

Program Power  400 Watts

Frequency Response

65Hz - 20kHz

High Frequency Sensitivity (1W/1m)

103dB

Low Frequency Sensitivity (1W/1m) 92dB

Voice Coil Diameter

2" / 50.8mm

Recom. Crossover Frequency 2.5kHz or higher @ 12dB/oct.
Voice Coil Length 14 mm
Air Gap Height 7 mm
X Damage (peak to peak) 26 mm
BL Factor 10.52 N/A

Mounting Information

Overall Diameter 6.4" / 162.5mm
Bolt Circle Diameter 6.77" / 172mm
Baffle Cutout Diameter-
- Front Mount 5.72" / 145.3mm
- Rear Mount 5.98" / 152mm
No. Of Mounting Holes 4
Volume Displaced By Driver 0.02 ft3  /  .55 Liters
Overall Depth 4.06" / 103mm
Net Weight 4.38 lb. / 1.99 kg.
Shipping Weight 4.89 lb. / 2.21 kg.

Materials

Low Frequency Woofer

Basket Die-Cast Aluminum
Cone Paper
Surround Rubber
Voice Coil Aluminum
Spider Conex
Magnet Neodymium

High Frequency Tweeter

Diaphragm PM-4
Voice Coil Edgewound Aluminum Ribbon
Voice Coil Former Kapton
Magnet Neodymium

Thiele-Small Parameters

Resonant Frequency (fs) 65 Hz
Impedance (Re) 5 ohms
Coil Inductance (Le) .2 mH
Mechanical Q (Qms) 3.95
Electrical Factor (Qes) .29
Total Q (Qts) .27
Comp. Equivalent Vol. (Vas) .33 ft3 / 9.4 Liters
Voice Coil Overhang (Xmax) 5.5 mm
Surface Area of Cone (Sd)m2 0.0135m2
Reference Efficiency .86%
Displacement Volume (Vd) 68.85 cm3

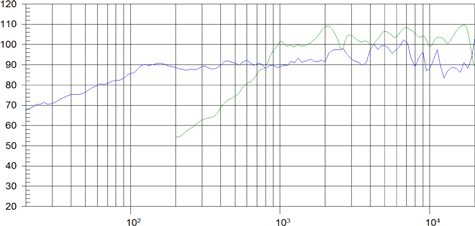

Frequency Response & Distortion Curves

Beyma 6CX200Nd/N Frequency

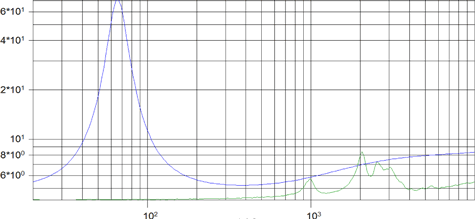

Impedance Curve

Beyma 6CX200Nd/N Impedance

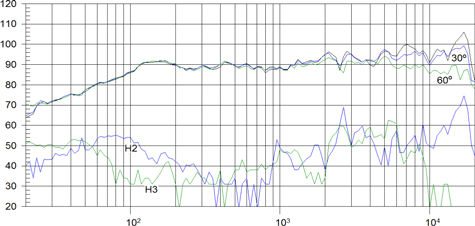

Filtered & Off-Axis Frequency Response

Beyma 6CX200Nd/N Axis

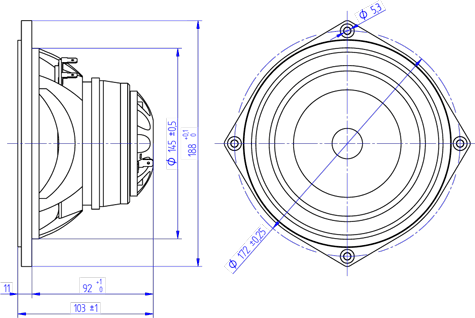

Mounting Dimensions

Beyma 6CX200Nd/N Dimension
