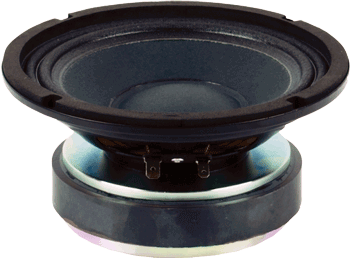

BEYMA 6CMV2 - 6.5" SPEAKER
|
|
|
BEYMA 6CMV2 - 6.5" SPEAKER |
|
THE BEYMA 6CMV2 IS CLEAN & LOUD SOUNDING WITH GOOD DETAIL IN THE MIDS & UPPER BASS! |
|
|
|
BEYMA 6CMV2 |
|
Item Price: $59.25
|
|
|
WOOFER MODEL - 6CMV2 |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
220 Watts |
| Program Power | 440 Watts |
|
Frequency Response |
95Hz - 8.0KHz |
|
Sensitivity (1W/1m) |
94dB |
|
Voice Coil Diameter |
1.5" / 38.1mm |
| Voice Coil Length | 14mm |
| Air Gap Height | 6mm |
| X Damage (peak to peak) | 30mm |
| Bl Factor (BL) | 9.4 N/A |
| Mounting Information | |
| Overall Diameter | 6.6" / 167mm |
| Bolt Circle Diameter | 6.1" / 156mm |
| Baffle Cutout Diameter | 5.6" / 141mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.019 ft3 / .5 Liters |
| Overall Depth | 3.1" / 80mm |
| Net Weight | 4.8 lb. / 2.2 kg. |
| Shipping Weight | 5.1 lb. / 2.3 kg. |
|
Materials |
|
| Basket | Pressed Steel |
| Cone | Paper |
| Surround | Treated Cloth |
| Surround Shape | Double Roll |
| Voice Coil | Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 90 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | .5 mH |
| Mechanical Q (Qms) | .5 |
| Electrical Factor (Qes) | .45 |
| Total Q (Qts) | .34 |
| Comp. Equivalent Vol. (Vas) | .23 ft3 / 6.5 Liters |
| Voice Coil Overhang (Xmax) | 5.7 mm |
| Moving Mass (Mms) | 13 Grams |
| Reference Efficiency | 1.0% |
| Displacement Volume | 80 cm3 |
|

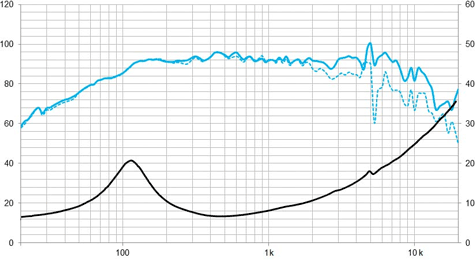

FREQUENCY RESPONSE & IMPEDANCE CURVE |
|
 |
|
|

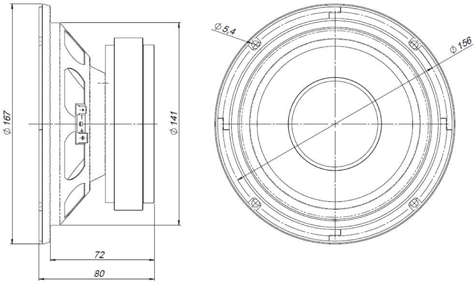

DIMENSIONAL DRAWING |
|
 |
|
