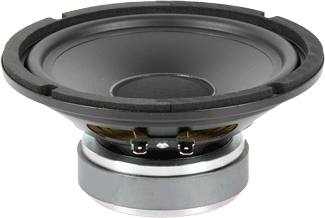

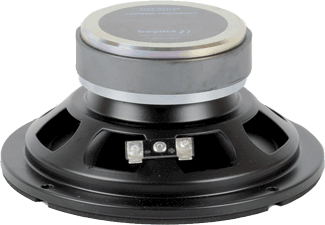

BEYMA 6B30/P - 6.5" LOW-MID SPEAKER
|
|
|
BEYMA 6B30/P - 6.5" LOW-MID SPEAKER |
|
THE BEYMA 6B30/P IS A 6.5" REPLACEMENT SPEAKER FOR HI-FI SPEAKERS & STUDIO MONITORS! |
|
|
|
BEYMA 6B30/P |
|
Item Price: $69.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
50
Watts |
| Program Power |
100
Watts |
|
Frequency
Response |
55Hz
- 8.0kHz |
|
Sensitivity
(1W/1m) |
90dB |
|
Voice
Coil Diameter |
1"
/ 25.4mm |
| BL Factor | 6.8 N/A |
| Voice Coil Length | 14 mm |
| Air Gap Height | 6 mm |
| X Damage (peak to peak) | 15 mm |
| Magnetic Assembly Weight | 2.2 lb. / 1.0 kg. |
|
Mounting Information |
|
|
Overall Diameter |
6.53" / 166mm |
|
Bolt
Circle Diameter |
6.14" / 156mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.51" / 140mm |
| - Rear Mount | 5.51" / 140mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | .5 ft3 / 1.5 Liters |
|
Overall
Depth |
2.95"
/ 75mm |
| Net Weight | 2.76 lb. / 1.25 kg. |
| Shipping Weight | 3.3 lb. / 1.5 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Polypropylene |
| Surround | Rubber |
| Voice Coil | Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 56 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 0.3 mH |
| Mechanical Q (Qms) | 3.0 |
| Electrical Factor(Qes) | .6 |
| Total Q (Qts) | .5 |
| Comp. Equivalent Vol. (Vas) | .55 ft3 / 15.6 Liters |
| Voice Coil Overhang (Xmax) | 5.5 mm |
| Moving Mass (Mms) | 14 Grams |
| Reference Efficiency | .45% |
| Displacement Volume | 77 cm3 |
|

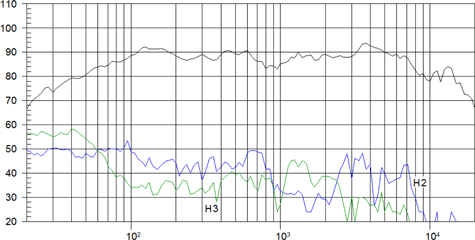

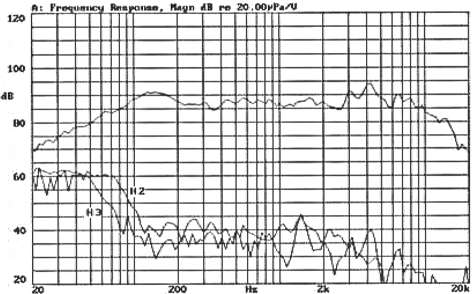

Frequency Response & Distortion Curves |
|
|
|
|
|

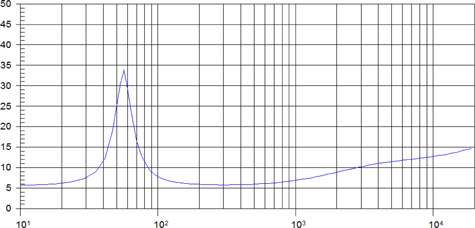

Impedance Curve |
|
|
|
|
|

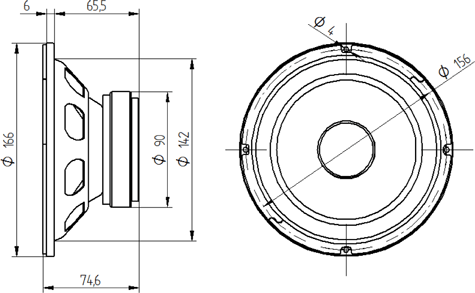

Mounting Dimensions |
|
|
|
|

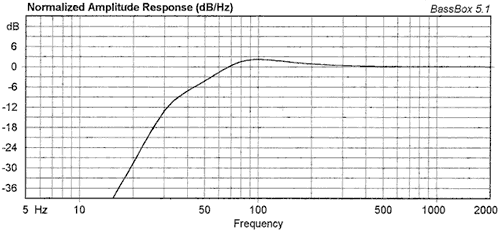

| Low Frequency Response: Bass Reflex Cabinet-Vb=15L, Fb=45Hz | |
 |
|
