BEYMA 18SW1600ND - 18" EXTREME HIGH POWER WOOFER
|
|
|
BEYMA 18SW1600ND - 18" EXTREME HIGH POWER WOOFER |
|
EXTREME HIGH POWER OF 3,200 WATTS PROGRAM, LARGE 5" VOICE COIL W/ A 10.0MM XMAX! |
|
|
|
BEYMA 18SW1600ND |
|
4 Ohm Version
Item Price: $619.95 |
|
|
8 Ohm Version
Item Price: $619.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
4 or 8
ohms |
|
AES
Power Rating |
1,600
Watts |
| Program Power |
3,200
Watts |
|
Frequency
Response |
25Hz
- 1.8kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
5"
/ 126mm |
| Recom. Enclosure Volume | 2.8-7.0 ft3 / 80-200 Liters |
| Voice Coil Length | 25 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 60 mm |
| BL Factor | 29 N/A |
| Magnetic Assembly Weight | 16.70 lb. / 7.59 kg. |
|
Mounting Information |
|
|
Overall Diameter |
18.11" / 460mm |
| Bolt Circle Diameter | 17.24" / 438mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 16.34" / 415mm |
| - Rear Mount | 16.73" / 425mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.46 ft3 / 13 Liters |
| Overall Depth | 7.67" / 195mm |
|
Net
Weight |
25.3 lb. / 11.5 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 32 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 3.1 mH |
| Mechanical Q (Qms) | 11.74 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .33 |
| Comp. Equivalent Vol. (Vas) | 7.26 ft3 / 205.7 Liters |
| Voice Coil Overhang (Xmax) | 10.0 mm |
| Surface Area of Cone (Sd)m2 | 0.1255m2 |
| Reference Efficiency | 1.93% |
| Displacement Volume (Vd) | 1164 cm3 |

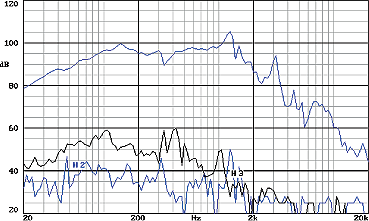

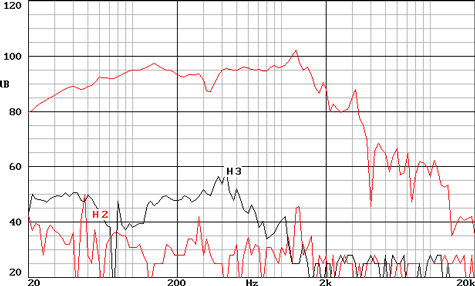

| Frequency Response & Distortion Curves | |
 |
|

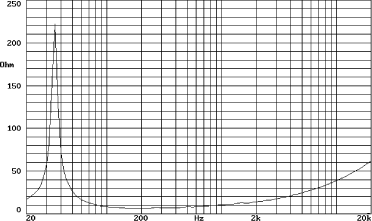

| Free Air Impedance Curve | |
 |
|

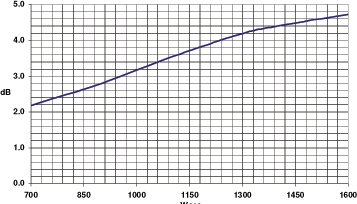

| Power Compression Loss | |
 |
|
