BEYMA 18LX60 - 18" HIGH POWER WOOFER
|
|
|
BEYMA 18LX60 - 18" HIGH POWER WOOFER |
|
LONG EXCURSION BASS WOOFER WITH AN EXTENDED XMAX OF 9MM! |
|
|
|
BEYMA 18LX60 |
|
Item Price: $329.95 New Low Price |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
25Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | 2.8-8.8 ft3 / 80-250 Liters |
| Voice Coil Length | 23 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 40 mm |
| BL Factor | 20.5 N/A |
| Magnetic Assembly Weight | 19.84 lb. / 9 kg. |
|
Mounting Information |
|
|
Overall Diameter |
18.11" / 460mm |
| Bolt Circle Diameter | 17.24" / 438mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 16.34" / 415mm |
| - Rear Mount | 16.73" / 425mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.46 ft3 / 13 Liters |
| Overall Depth | 7.67" / 195mm |
|
Net
Weight |
25.3 lb. / 11.5 kg. |
| Shipping Weight | 28.6 lb. / 13 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 27 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 1.2 mH |
| Mechanical Q (Qms) | 11.45 |
| Electrical Factor (Qes) | .38 |
| Total Q (Qts) | .37 |
| Comp. Equivelant Vol. (Vas) | 17.66 ft3 / 500 Liters |
| Voice Coil Overhang (Xmax) | 9 mm |
| Surface Area of Cone (Sd)m2 | 0.1320m2 |
| Reference Efficiency | 2.5% |
| Displacement Volume (Vd) | 1200 cm3 |
|

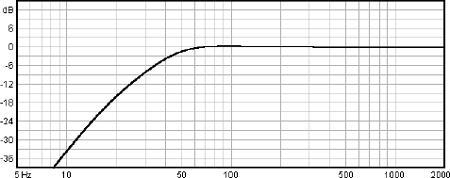

Low Freq. Response: Bass Reflex Cabinet-Vb=150L, Fb=30Hz |
|
 |
|
| Frequency Response & Distortion Curves | |
 |
|
|
Mounting Dimensions |
|
 |
|
