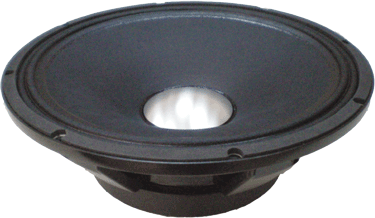

BEYMA 15E138 - 15" ORGAN/GUITAR SPEAKER
|
|
|
BEYMA 15E138 - 15" ORGAN/GUITAR SPEAKER |
|
TIGHT SOUNDING CLEAN BASS WITH MIDS & HIGHS THAT JUMP OUT AT YOU! |
|
|
|
BEYMA 15E138 |
|
8 Ohms
Item Price: $279.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
300
Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
60Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | 1.4-5.3 ft3 / 40-150 Liters |
| Voice Coil Length | 11.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 38 mm |
| BL Factor | 22.3 N/A |
| Magnetic Assembly Weight | 19.85 lb. / 9 kg. |
|
Mounting Information |
|
|
Overall Diameter |
15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57" / 370mm |
| Baffle Cutout Diameter- |
|
| - Front Mount | 13.84" / 352mm |
| - Rear Mount | 14.17" / 360mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
| Overall Depth | 5.67" / 144mm |
| Net Weight | 23.1 lb. / 10.5 kg. |
| Shipping Weight | 25.3 lb. / 11.5 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Spider | Dual Nomex + Polycotton |
| Voice Coil | Edgewound Copper Wire |
| Magnet | High Curie Temperature Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 44 Hz |
|
Impedance
(Re) |
5.6 ohms |
| Coil Inductance (Le) | 2.9 mH |
| Mechanical Q (Qms) | 10.55 |
| Electrical Factor(Qes) | .29 |
| Total Q (Qts) | .28 |
| Comp. Equivelant Vol. (Vas) | 6.63 ft3 / 168.5 Liters |
| Voice Coil Overhang (Xmax) | 3.6 mm |
| Surface Area of Cone (Sd)m2 | 0.091m2 |
| Reference Efficiency | 4.9% |
| Displacement Volume | 285 cm3 |
|

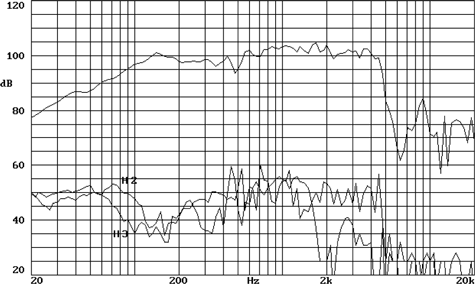

FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
|

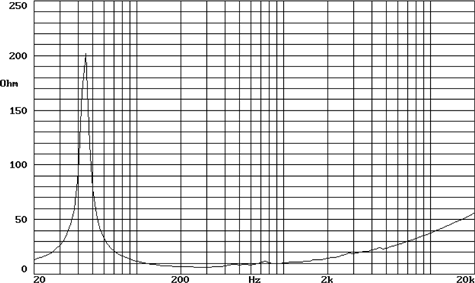

FREE AIR IMPEDANCE CURVE |
|
|
|
|
