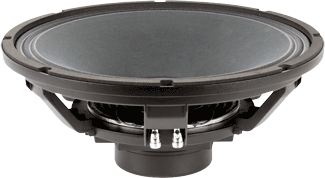

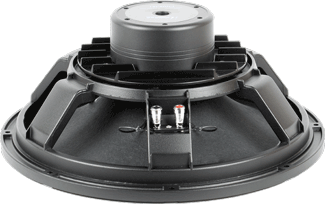

BEYMA 15P80Nd - 15" LIGHTWEIGHT MID-BASS SPEAKER
|
|
|
BEYMA 15P80Nd - 15" LIGHTWEIGHT MID-BASS SPEAKER |
|
WIDE FREQUENCY RANGE FROM 25HZ TO 4.0KHZ, HIGH EFFICIENCY MIDRANGE W/ STRONG TIGHT LOWS & WATERPROOF CONE FOR OUTDOOR APPLICATIONS! |
|
|
|
BEYMA 15P80Nd |
|
Item Price: $509.95 |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
800
Watts |
| Program Power |
1,600
Watts |
|
Frequency
Response |
40Hz
- 4kHz |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | 1.4-5.3 ft3 / 40-150 Liters |
| Voice Coil Length | 20 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 52 mm |
| BL Factor | 23.8 N/A |
| Magnetic Assembly Weight | 10.16 lb. / 4.62 kg. |
|
Mounting Information |
|
| Overall Diameter | 15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.76" / 349.5mm |
| - Rear Mount | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.19 ft3 / 5.5 Liters |
|
Overall
Depth |
6.3" / 160mm |
|
Net
Weight |
13.3 lb. / 6 kg. |
| Shipping Weight | 15.4 lb. / 7 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Spider | Conex Spider |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 39 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Coil Inductance (Le) | .8 mH |
| Mechanical Q (Qms) | 5.1 |
| Electrical Factor(Qes) | .22 |
| Total Q (Qts) | .21 |
| Comp. Equivalent Vol. (Vas) | 6.5 ft3 / 184 Liters |
| Voice Coil Overhang (Xmax) | 7.5 mm |
| Diaphragm Mass (Mms) | 98 Grams |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Reference Efficiency | 4.9% |
| Displacement Volume (Vd) | 660 cm3 |

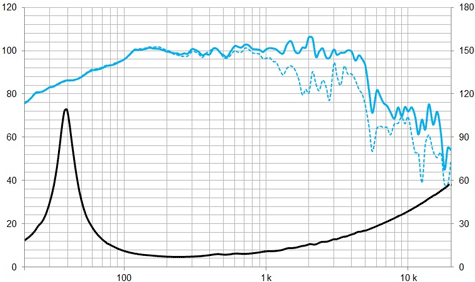

| Frequency Response & Impedance Graph | |
 |
|

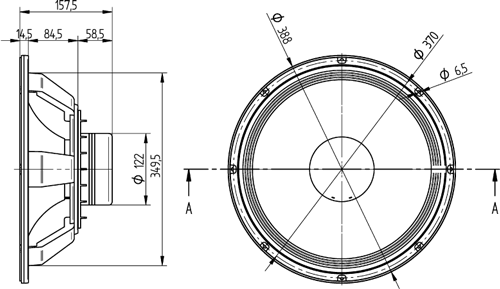

| Mounting Dimensions | |
 |
|
