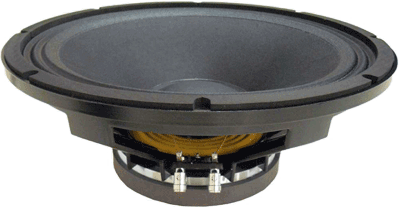

BEYMA 15Mi100 - 15" MIDRANGE SPEAKER
|
|
|
BEYMA 15Mi100 - 15" MIDRANGE SPEAKER |
|
VERY CLEAR NATURAL SOUNDING MIDRANGE & A TIGHT UPPER BASS MAKES THIS A GREAT CHOICE FOR ACCURATE VOCAL REPRODUCTION! |
|
|
|
BEYMA 15Mi100 |
|
Item Price: $289.95 |
|
|
LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW. |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
450
Watts |
| Program Power |
900
Watts |
|
Frequency
Response |
40Hz
- 5kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
3"
/ 77mm |
| Recom. Enclosure Volume | 1.4-3.5 ft3 / 40-100 Liters |
| Voice Coil Length | 13.7 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 19.2 N/A |
| Magnetic Assembly Weight | 14.2 lb. / 6.5 kg. |
|
Mounting Information |
|
|
Overall Diameter |
15.28" / 388mm |
| Bolt Circle Diameter | 14.56" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.85" / 352mm |
| - Rear Mount | 13.97" / 355mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
| Overall Depth | 6.42" / 163mm |
|
Net
Weight |
17.2 lb. / 7.8 kg. |
| Shipping Weight | 18.9 lb. / 8.6 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Aluminum Wire |
| Magnet | High Curie Temperature Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 37 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 6.38 |
| Electrical Factor(Qes) | .3 |
| Total Q (Qts) | .29 |
| Comp. Equivalent Vol. (Vas) | 9.32 ft3 / 264 Liters |
| Voice Coil Overhang (Xmax) | 4.5 mm |
| Moving Mass (Mms) | 77 Grams |
| Surface Area of Cone (Sd)m2 | 0.0880m2 |
| Reference Efficiency | 4.3% |
| Displacement Volume (Vd) | 396 cm3 |
| FREQUENCY RESPONSE & DISTORTION CURVES | |
 |
|
|

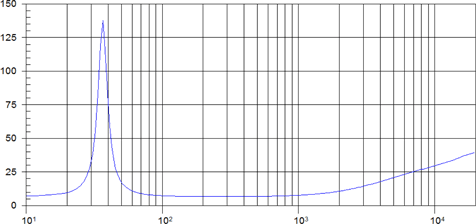

IMPEDANCE CURVE |
|
 |
|

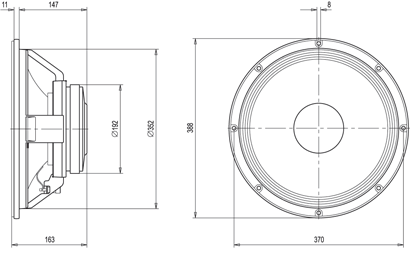

| MOUNTING INFORMATION | |
 |
|
