BEYMA 15KX - 15" PRO COAXIAL SPEAKER

WORKS EXCELLENT IN ENCLOSURES FOR QUALITY STAGE & STUDIO MONITORS!

BEYMA 15KX

No Longer Available

USE THE BEYMA FD-212 2-WAY CROSSOVER WITH THIS 15" COAXIAL

WOOFER MODEL  - 15KX

Low Frequency Specifications

Nominal Basket Diameter

15" / 380mm

Impedance

8 ohms

Power Rating (Low Freq.)

300 watts AES

Program Power  600 watts

Frequency Range

25Hz - 3.0kHz

Sensitivity (1W/1m)

99dB

Voice Coil Diameter

3" / 77mm

Recom. Enclosure Volume 2.14-5.59 ft3  /  60-150 Liters
Voice Coil Length 13 mm
Air Gap Height 8 mm
X Damage (peak to peak) 28 mm
Voice Coil Inductance (Le) 1mH

High Frequency Specifications

Rated Impedance 8 ohms
Minimum Impedance 6.5 ohms @ 1kHz
Power Rating 100 watts AES
Frequency Range 800Hz - 17kHz
Sensitivity (1W/1m) 105dB
Voice Coil Diameter 2.8" / 72.2mm
Flux Density 1.4T
BL Factor 7.5 N/A
Dispersion 90°

Mounting Information

Overall Diameter 15.28" / 388mm
Bolt Circle Diameter 14.57" / 370mm
Baffle Cutout Diameter-
- Front Mount 13.85" / 352mm
- Rear Mount 13.98" / 355mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.25 ft3  /  7 Liters
Overall Depth 6.38" / 162mm
Net Weight 18.19 lb. / 8.25 kg.
Shipping Weight 20.4 lb. / 9.25 kg.

Low Frequency Materials

Basket Die Cast Aluminum
Cone Paper
Surround Plasticised Cloth
Voice Coil Edgewound Aluminum Ribbon
Magnet Ferrite

High Frequency Materials

Diaphragm Titanium
Voice Coil Edgewound Aluminum Ribbon
Voice Coil Former Kapton

Thiele-Small Parameters

Resonant Frequency (Fs) 45 Hz
Impedance (Re) 5.68 ohms
Mechanical Q (Qms) 11.4
Electrical Factor(Qes) .519
Total Q (Qts) .496
Comp. Equivalent Vol. (Vas)

7.17 ft3 / 203 Liters

Voice Coil Overhang (Xmax) 3.5 mm
Reference Efficiency 3.18%
Displacement Volume 300 cm3

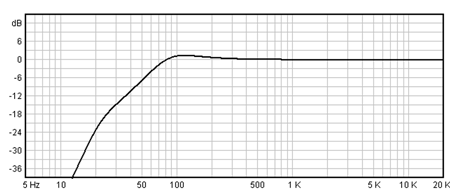

Low Freq. Response: Bass Reflex Cabinet-Vb=90L, Fb=40Hz

Frequency Response & Distortion Curves

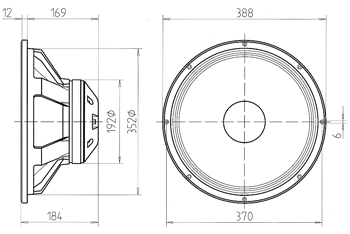

Mounting Dimensions
