BEYMA 15G450/N - 15" HIGH POWER WOOFER
|
|
|
BEYMA 15G450/N - 15" HIGH POWER WOOFER |
|
THIS POWERFUL 15" HAS A 4.5" VOICE COIL & HANDLES 750 WATTS RMS! |
|
|
|
BEYMA 15G450/N |
|
No Longer Available |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
750
Watts |
| Program Power |
1,500
Watts |
|
Frequency
Response |
30Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4.5" / 114mm |
| Recom. Enclosure Volume | 1.75-5.25 ft3 / 50-150 Liters |
| Voice Coil Length | 21 mm |
| Air Gap Height | 9 mm |
| X Damage (peak to peak) | 35 mm |
| BL Factor | 24.3 N/A |
| Magnetic Assembly Weight | 19.84 lb. / 9 kg. |
|
Mounting Information |
|
| Overall Diameter | 15.28" / 388mm |
|
Bolt
Circle Diameter |
14.56" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.85" / 352mm |
| - Rear Mount | 13.97" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.421 ft3 / 6 Liters |
|
Overall
Depth |
6.69" / 170mm |
|
Net
Weight |
26.84 lb. / 12.2 kg. |
| Shipping Weight | 29.04 lb. / 13.2 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Flat Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 45 Hz |
|
Impedance
(Re) |
5.7 ohms |
| Coil Inductance (Le) | 1.2 mH |
| Mechanical Q (Qms) | 10.5 |
| Electrical Factor(Qes) | .33 |
| Total Q (Qts) | .32 |
| Comp. Equivalent Vol. (Vas) | 4.06 ft3 / 115 Liters |
| Voice Coil Overhang (Xmax) | 6.5 mm |
| Surface Area of Cone (Sd)m2 | 0.0880m2 |
| Reference Efficiency | 3% |
| Displacement Volume (Vd) | 570 cm3 |
|

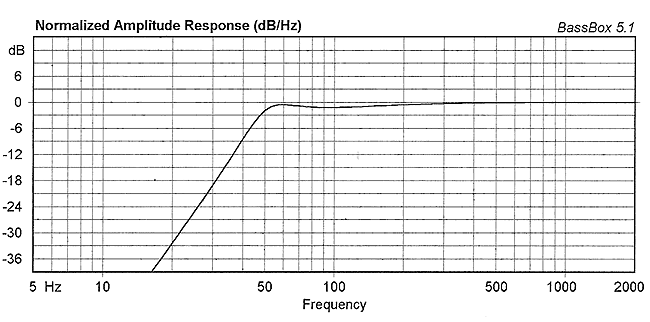

Low Freq. Response: Bass Reflex Cabinet-Vb=100L, Fb=50Hz |
|
 |
|
| Frequency Response & Distortion Curves | |
 |
|
| Mounting Dimensions | |
 |
|
