BEYMA COMPETITION SERIES
12XMAX - 12" HIGH POWER SUBWOOFER
|
|
|
BEYMA COMPETITION SERIES |
|
12XMAX - 12" HIGH POWER SUBWOOFER |
|
DELIVERS 1,200 WATTS OF CHEST POUNDING BASS THAT IS AWESOME! |
|
|
|

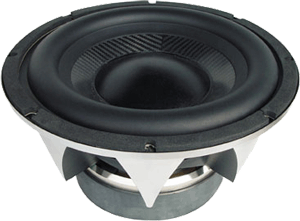

BEYMA 12XMAX |
|
Item Price: $549.95 New Low Price |
|
|
Build your own subwoofer cabinet. See box designs below. |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
2 x 2
ohms |
|
RMS
Power Rating |
2 x 600
Watts |
| Program Power |
2 x 1,800
Watts |
|
Frequency
Response |
25Hz
- 2.0kHz |
|
Sensitivity
(1W/1m) |
93dB |
|
Voice
Coil Diameter |
3"
/ 77mm |
| Recom. Enclosure Volume | .7-2.24 ft3 / 20-60 Liters |
| Voice Coil Length | 30 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 60 mm |
| BL Factor | 16.8 N/A |
| Magnetic Assembly Weight | 26.4 lb. / 12 kg. |
|
Mounting Information |
|
|
Overall Diameter |
12.6" / 320mm |
|
Bolt
Circle Diameter |
11.9"
/ 302mm |
|
Baffle Cutout Diameter- |
|
| - Front Mount | 11.18" / 284mm |
| - Rear Mount | 10.83" / 275mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.18 ft3 / 5.0 Liters |
|
Overall
Depth |
6.9"
/ 175mm |
|
Net
Weight |
28.6 lb. / 13 kg. |
|
Shipping Weight |
33 lb. / 15 kg. |
|
Materials |
|
|
Basket |
Die Cast Aluminum |
|
Cone |
Kevlar |
|
Surround |
Rubber |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
|
Resonant Frequency (fs) |
37 Hz |
|
Impedance
(Re) |
3.1 ohms |
| Coil Inductance (Le) | 2.1 mH |
|
Mechanical Q (Qms) |
7.8 |
| Electrical Factor(Qes) | .4 |
|
Total Q (Qts) |
.38 |
|
Comp. Equivalent Vol. (Vas) |
1.13 ft3 / 32 Liters |
|
Voice Coil Overhang (Xmax) |
12 mm |
| Surface Area of Cone (Sd)m2 | 0.0435 |
| Reference Efficiency | .4% |
| Displacement Volume (Vd) | 500 cm3 |
|
CLOSED BOX DESIGN SPECS |
|
|
|
|
VENTED BOX DESIGN SPECS |
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
