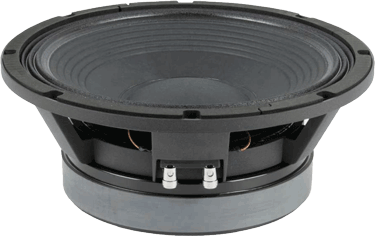

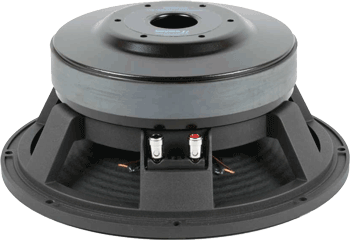

BEYMA 12P80FeV2 - 12" HIGH EFFICIENCY SPEAKER
|
|
|
BEYMA 12P80FeV2 - 12" HIGH EFFICIENCY SPEAKER |
|
THE BEYAM 12P80FeV2 IS GREAT FOR SPEAKER SYSTEMS THAT REQUIRE EXTENDED ARTICULATE MIDRANGE WITH POWERFUL DEEP BASS! |
|
|
|
BEYMA 12P80FeV2 |
|
Item Price: $309.75 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
50Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
99dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | .7-2.24 ft3 / 20-60 Liters |
| Voice Coil Length | 20 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 52 mm |
|
Mounting Information |
|
|
Overall Diameter |
12.28" / 312mm |
|
Bolt
Circle Diameter |
11.7"
/ 298mm |
| Baffle Cutout Diameter | 11.1" / 283mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.14 ft3 / 4 Liters |
|
Overall
Depth |
5.3" / 135mm |
|
Net
Weight |
25.3 lb. / 11.5 kg. |
| Shipping Weight | 26.9 lb. / 12.2 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | High Stiffness Paper |
| Surround | Treated Cloth |
| Spider | Conex |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 48 Hz |
|
Impedance
(Re) |
5 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 6.5 |
| Electrical Factor(Qes) | .22 |
| Total Q (Qts) | .21 |
| Comp. Equivalent Vol. (Vas) | 2.15 ft3 / 61 Liters |
| Voice Coil Overhang (Xmax) | 7.5mm |
| Effective Surface Area (Sd) | .0550 m2 |
| Diaphragm Mass (Mms) | 76 Grams |
| Reference Efficiency | 3% |
| BL Factor | 23 N/A |
| Displacement Volume (Vd) | 412 cm3 |
|

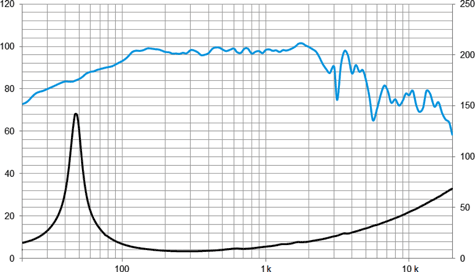

Low Frequency Response & Impedance Graph |
|
 |
|

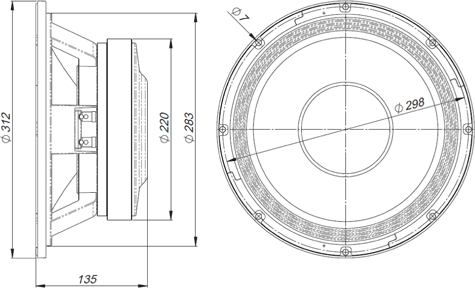

| Dimensional Drawing | |
 |
|
