BEYMA 12CX - 12" COAXIAL SPEAKER
|
|
|
BEYMA 12CX - 12" COAXIAL SPEAKER |
|
THIS 12" COAXIAL SPEAKER DELIVERS AN ACCURATE SMOOTH SOUND! |
|
|
|
BEYMA 12CX |
|
Item Price: $199.95 New Low Price |
|
|
COAXIAL MODEL |
12CX |
|
Specifications |
|
|
Low Frequency Woofer |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
100
Watts |
| Program Power |
200
Watts |
|
Frequency
Response |
45Hz
- 7.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
2"
/ 52mm |
| Recom. Enclosure Volume | 1.06-3.53 ft3 / 30-100 Liters |
| Voice Coil Length | 11 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 16 mm |
| BL Factor | 13 N/A |
| Magnetic Assembly Weight | 8.5 lb. / 3.85 kg. |
|
High Frequency Tweeter |
|
| Impedance | 8 ohms |
| Minimum Impedance | 8.2 ohms @ 7kHz |
|
AES
Power Rating |
15 Watts |
| Frequency Response | 3.5kHz to 20kHz |
|
Sensitivity
(1W/1m) |
104dB |
| Dispersion | 90° |
| Voice Coil Diameter | 1" / 25.4mm |
| Flux Density | 1.45 T |
| BL Factor | 4 N/A |
| X Damage | 20mm |
|
Mounting Information |
|
|
Overall Diameter |
12.6"
/ 320mm |
| Bolt Circle Diameter |
11.77"
/ 299mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.1" / 282mm |
| - Rear Mount | 11.02" / 280mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.055 ft3 / 1.6 Liters |
|
Overall
Depth |
6.18"
/ 157mm |
|
Net
Weight |
11.57 lb. / 5.26 kg. |
| Shipping Weight | 13 lb. / 5.9 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | Aluminum |
| Voice Coil | Copper |
| Voice Coil Former | Kapton |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 42 Hz |
| Impedance (Re) | 6.22 ohms |
| Coil Inductance (Le) | .7 mH |
| Mechanical Q (Qms) | 3.5 |
| Electrical Factor (Qes) | .38 |
| Total Q (Qts) | .34 |
| Comp. Equivelant Vol. (Vas) | 5.17 ft3 / 146.4 Liters |
| Voice Coil Overhang (Xmax) | 2.0 mm |
| Surface Area of Cone (Sd)m2 | 0.053m2 |
| Reference Efficiency | 2.65% |
| Displacement Volume (Vd) | 106 cm3 |
|

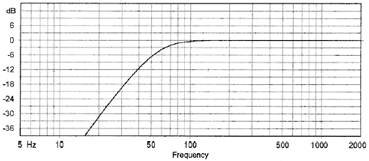

Predicted Low Frequency Response - Vb=50L, Fb=50Hz |
|
|
|
|
|
Frequency Response & Distortion Curves |
|
|
|
|
|

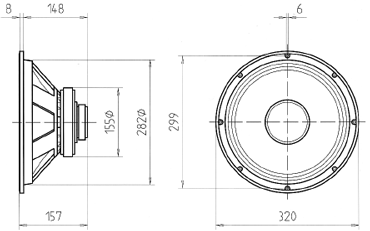

Mounting Dimensions |
|
|
|
|
