BEYMA 12MW/ND - 12" NEODYMIUM BASS SPEAKER
|
|
|
BEYMA 12MW/ND - 12" NEODYMIUM BASS SPEAKER |
|
LIGHTWEIGHT NEO 12" SPEAKER W/ A HIGH 7.5MM XMAX & 700 WATTS POWER HANDLING! |
|
|
|
BEYMA 12MW/ND |
|
Item Price: $269.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|

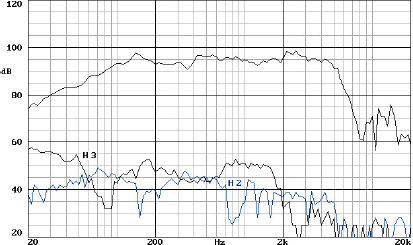

Frequency
Response |
35Hz
- 5kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
2.5"
/ 62.4mm |
| Recom. Enclosure Volume | 1.06-3.53 ft3 / 30-100 Liters |
| Voice Coil Length | 19.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 30 mm |
| Magnetic Assembly Weight | 5.59 lb. / 2.54 kg. |
|
Mounting Information |
|
|
Overall Diameter |
12.28" / 312mm |
|
Bolt
Circle Diameter |
11.59"
/ 294.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 10.94" / 278mm |
| - Rear Mount | 11.22" / 285mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.12 ft3 / 3.5 Liters |
|
Overall
Depth |
5.21" / 132.3mm |
|
Net
Weight |
7.26 lb. / 3.3 kg. |
| Shipping Weight | 8.8 lb. / 4 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | High Stiff Paper |
| Surround | Treated Cloth |
| Spider | Cotton |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 43 Hz |
|
Impedance
(Re) |
6 ohms |
| Coil Inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 9.15 |
| Electrical Factor(Qes) | .34 |
| Total Q (Qts) | .32 |
| Comp. Equivalent Vol. (Vas) | 3.53 ft3 / 100 Liters |
| Voice Coil Overhang (Xmax) | 7.5mm |
| Effective Surface Area (Sd) | .0550 m2 |
| Reference Efficiency | 2.3% |
| BL Factor | 16.9N/A |
| Displacement Volume (Vd) | 412 cm3 |
|
Low Freq. Response: Bass Reflex Cabinet- |
|
 |
|

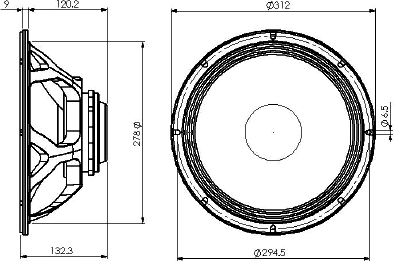

| Dimensional Drawings | |
 |
|
